Parameter

Details

Model

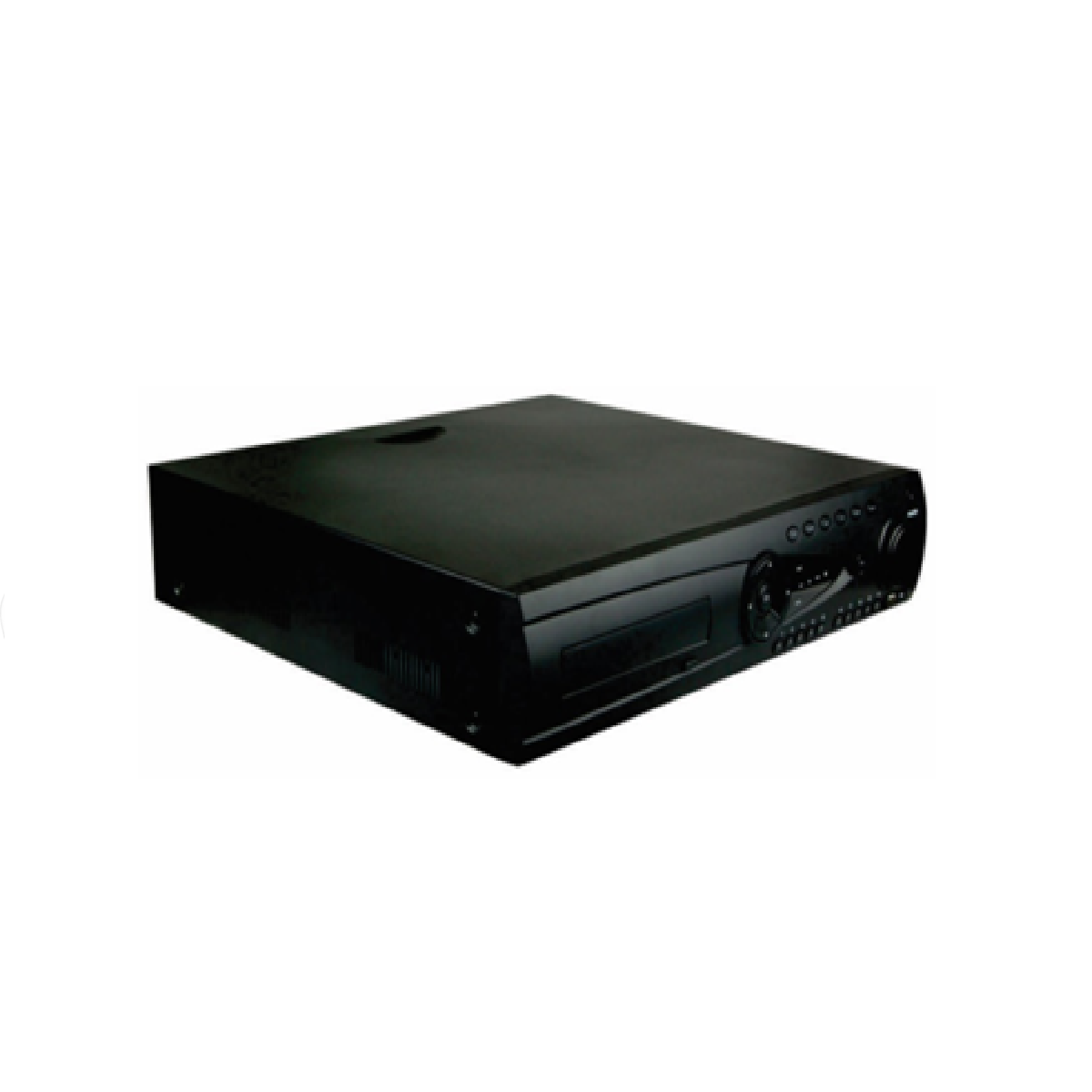

SS-N8064RV-H8-M5

Make

SECURUS

User Interface

Graphic User Interface (GUI)

Operating System

Embedded Linux

Operation Mode

Preview, Record, Playback, Backup, Network

Password Security

Multi-level User Management

ONVIF

Support

Video Input

64ch 1080PM/36ch4MP/24ch5M

HDMI Output

Supports 2 (Max : 4K)

VGA Output

Supports 1 (Max : 1080P)

CVBS main output

N.A.

Audio Input

1 Ch

Audio output

1 Ch, RCA connector

Display

1/4/6/8/9/10/13/16/25/32/64 optional

Video standard

PAL/NTSC

Video compression

H.265+/H.265/H.264+/H.264

Intelligent Functions

Face Detection, Vehicle Detection, Trip Wire

Video encoding resolution

12MP; 8MP; 5MP; 4MP; 3MP; 1080P

Synchronous Playback

16CH

Video frame rate

PAL: 1-25 FPS NTSC: 1-30FPS

Video bit rate

1536kbps-3072kbps

Stream Type

Video & Audio/Video

Audio compression

G.711a

Recording mode

Always/Schedule/Alarm/  recording/Motion detection recording

Video search

Time/Channel/Event

Display Zoom

Live Playback & Mobile

Audio bit rate

8—32kbps

Dual-stream

Supports

Mobile Monitoring

"RMEye Pro" Application for Android

And iPhone

Recording resolution

64 CH Realtime Recording

HDD Port

8 SATA

HDD Maximum Capacity

12TB for each Sata connector

Voice talk

Support; 1CH BNC line in/1CH RCA Audio out.

Record mode

Audio & Video recording simultaneously

Remote control

Supports

Network protocol

Supports IE/PPPoE/DDNS

Network Bandwidth

900Mbps Incoming / 900Mbps Outgoing

RAID

Supported

(redundant array of independent disks)

DDNS Server

www.securusddns.com

Network

2 RJ45 10M/100M/1000M

USB Connector

2 x USB2.0 1 x USB3.0

Firmware update

Support USB update/Network update

Serial Interface

RS485, RS232

Alarm input

16

Alarm output

4

Power supply

ATX

Operation Temperature

-10℃--＋55℃

Operation Humidity

10％--90％

Chassis

Standard 2.0U

Dimension

427.5mm (W) × 443mm (L) × 92mm (H)

Weight(without HDD)

≤6.0Kg

Certifications

CE, FCC, RoHS, BIS
