Parameter

Details

Model

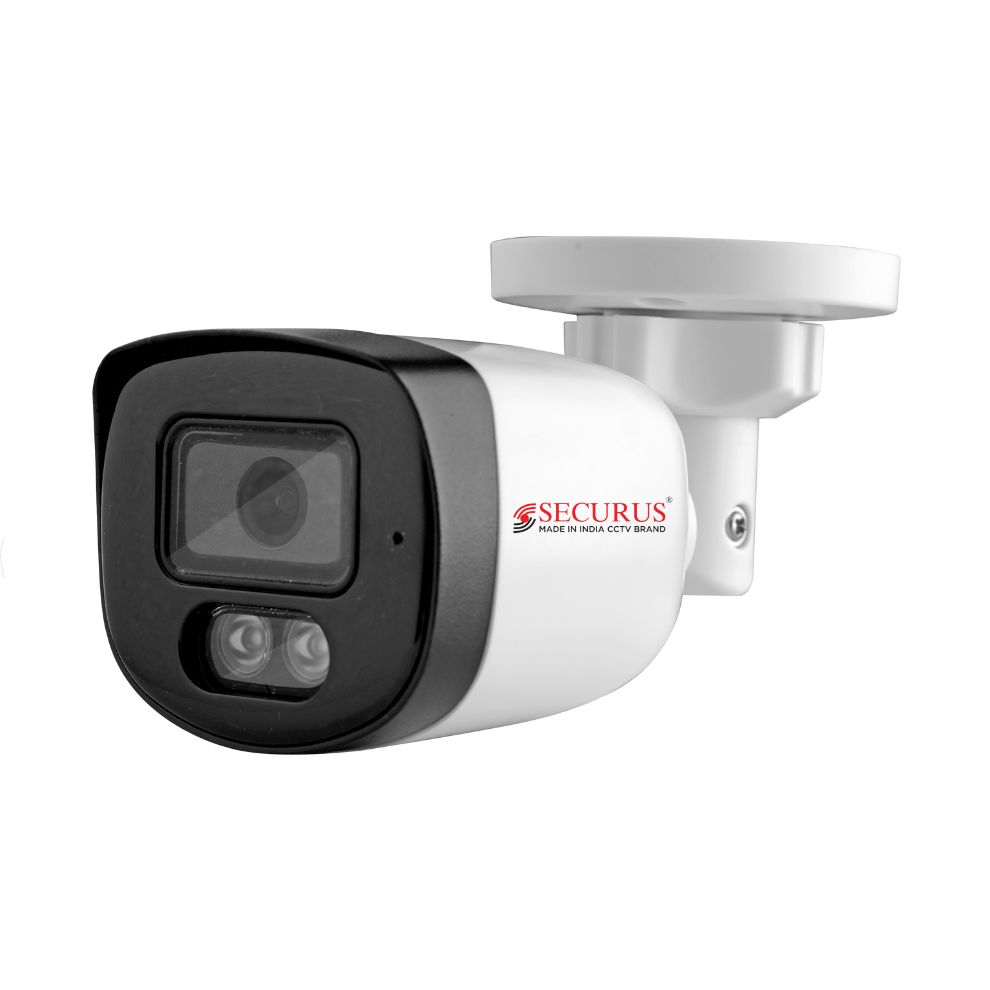

SS-NC20L2XP-HSUTL-M3(S)

Make

SECURUS

Product Range

Utility Range

Image Sensor

1/2.7“ Progressive Scan CMOS

Image Pixels

2304 x 1296 Pixels (3.0 MP)

Minimum Illumination

0.01Lux @ (F1.2,AGC ON), 0Lux with IR

Day/Night

Auto (ICR) / Color / Black & White

WDR (Wide Dynamic Range)

≥120db

IR LED

1 Warm LED + 1 IR LED

IR LED Technology

Human Sense® Technology

IR Distance

20~30 Meters

Shutter Type

Manual/Auto

Shutter Speed

1/25s ~ 1/100000s

Lens Mount

3.6mm / 4.0mm

Lens Type

Board Lens

Network Interface

10/100 MBPS RJ45 Connector

Network Protocol

HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP,

SMTP, FTP, DHCP, DNS, DDNS, PPPoE,

IPv4/v6, SNMP, QoS, UPnP, NTP

Video Encoding

H.265AI/H.265+/H.265/H.264+/H.264

Video Bitrate

128kbps ~ 8Mbps

Video Streams

Max : 2304 x 1296; 1920 x 1080;

720 x 576; 20/25 FPS

Digital Zoom

16X

Audio Input

Yes; 1Ch; 2Vp-p 1kᲲ Impedance

Audio Output

Yes; 1Ch; 16Ჲ Impedance

Audio Compression

G.711

Image Setup

Mirror Image/Reverse/Color Settings

Alarm

N/A

Intelligent AI Feature

Human Sense, Face Detection,

Trip Wire

Operation Temperature

-10°C ~ +55°C

Operation Humidity

0% ~ 90%

Power Supply

DC12V, PoE (IEEE802.3af)(Class 0)

Power Consumption

≤8.5W

Dimensions

180mm x 70mm x 70mm

Weight

≤0.5 KGs

Ingress Protection

IP67

Certifications

CE, FCC, RoHS
