Parameter

Details

Model

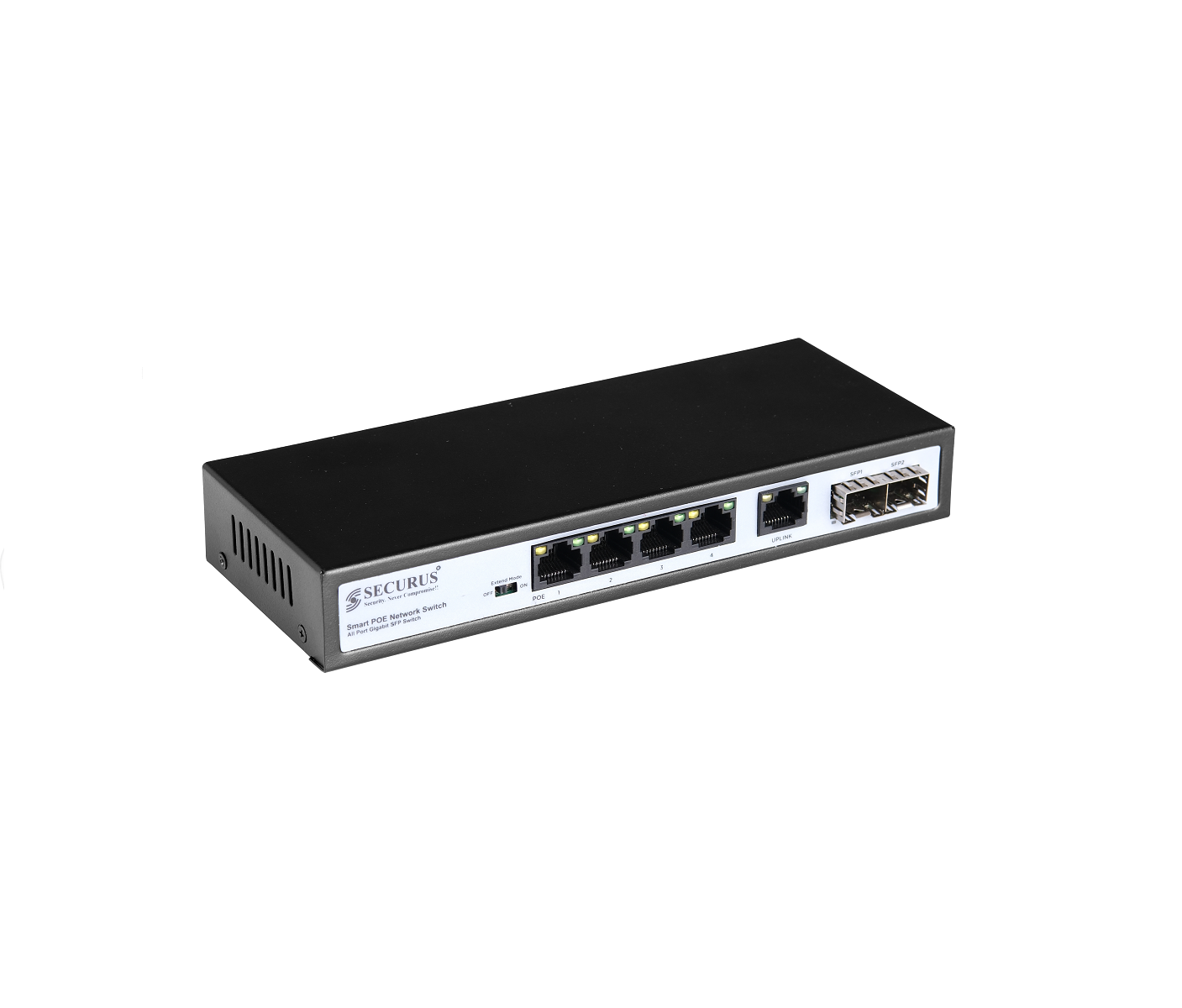

SS-N04GP-G1-S2

Make

SECURUS

Network Ports

4 Gigabit Ports : 10/100/1000 Mbps

1 Gigabit Up-link Port: 10/100/1000 Mbps

2 Gigabit SFP ports: 10/100/1000Mbps

Transmission Distance

4 Gigabit Ports :

100 Mtrs @ 1000 Mbps;

250 Mtrs @ 10Mbps

1 Gigabit Up-link Port : 100 Meters

Transmission Media

Cat5e/Cat6 Standard UTP Cable

POE Standard

IEEE802.3 af/at Standard

POE Power Supply Method

End-Span Method

POE Power Supply Watt

Each Port ≤30W, Total Power 60W

Network Standard

IEEE802.3, IEEE802.3u, IEEE802.3ab,

IEEE802.3az, IEEE802.3z

Swap Mode

Store & Forward

Data Caching Mechanism

448K

MAC Address List

16 K

Reset Button

Available

VLAN Switch

Available

Power Supply Mode

Power Adaptor

Voltage Range

DC48V ~ 56V

Power Consumption

Device: <5W ; Adaptor: <60W

Working Temperature

-10˚C ~ 60˚C

Storage Temperature

-40˚C ~ 75˚C

Humidity

0 ~ 95%

Dimensions (L x W x H)

160mm x 94mm x 28mm

Color (Chasis)

Black

Weight

425 Grams

Mean Time Between Failures

(MTBF)

>50000 Hours

Certifications

CE, FCC, RoHS
