Parameter

Details

Model

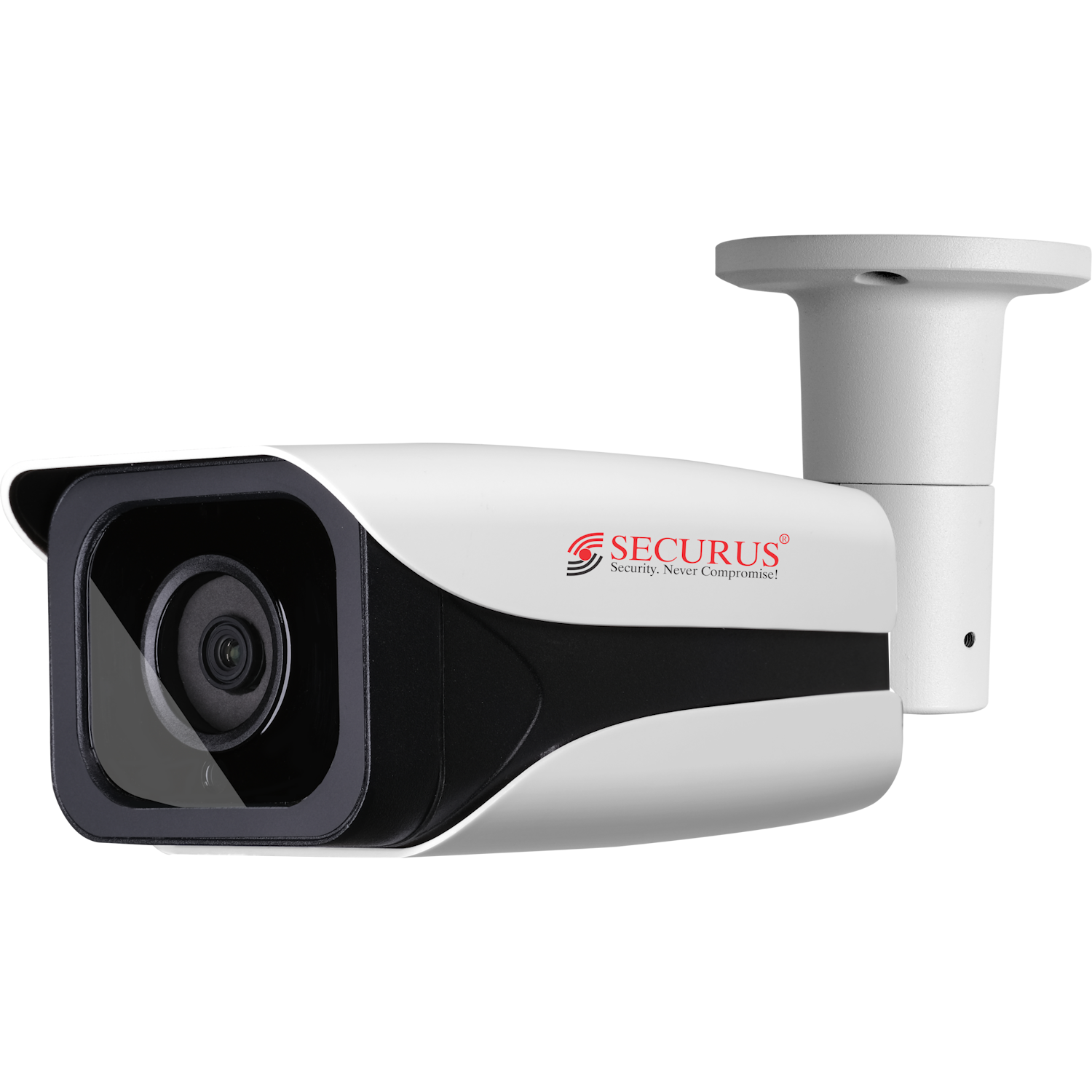

SS-NC20L2CP-YXF-M8(4K)

Make

SECURUS

Image Sensor

1/2.7“ Progressive Scan CMOS

Image Pixels

3840 x 2160 (8.0 MP), 2880 x 1616 (5.0 MP), 2560 x 1440 (4.0 MP), 2304 x 1296 (3.0MP), 1920 x 1080 (2.0 MP)

Minimum Illumination

0.01Lux @ (F1.2,AGC ON),0Lux with IR

Day/Night

Auto (ICR) / Color / Black & White

WDR (Wide Dynamic Range)

≥120db

IR LED

18 SMD IR LED

IR Distance

30 Meters

Shutter Type

Manual/Auto

Shutter Speed

1/50s ~ 1/10,000s

Lens Mount

3.6mm / 4.0mm / 6.0mm

Lens Type

Board Lens

Network Interface

1*RJ45 Connector 10/100 MBPS

Network Protocol

HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/v6, SNMP, QoS, UPnP, NTP,FTP, DHCP

SD Card

Supported (Max: 512GB) (Optional)

Video Encoding

H.265AI/H.265+/H.265/H.264+/H.264

Video Bitrate

128kbps ~ 8Mbps

Video Streams

Main Stream : 3840 x 2160; @15FPS; 2880 x 1616@25FPS; 2560 x 1440; @25FPS; 1920 x 1080; 25 FPS Sub Stream 1 : 800 x 448; @25FPS

Digital Zoom

16X

Audio Input

Yes; 1Ch; 2Vp-p 1kᲲ Impedence (Optional)

Audio Output

Yes; 1Ch; 16Ჲ Impedence (Optional)

Audio Compression

G.711, Support bidirectional talk, Audio & Video synchronization

Image Setup

Mirror Image/Reverse/Color Settings

Alarm

N/A

Intelligent AI Feature

Human Detection, Face Detection, People Counting, Customer Flow Statistics

Customer Flow Values

Enter, Leave & Pass Through (Max : 65,500 Per Day)

Statistics Reports

Daily, Weekly, Monthly & Annual Statistics

Graph Reports

Tabular Report, Line Chart & Histogram

Reports Export

Export to Excel Sheet (.xls)

ONVIF

ONVIF Profile G, S & T Conformant

Power Consumption

≤3W

Operation Temperature

-10°C ~ + 65°C

Operation Humidity

0% ~ 90%

Power Supply

DC12V/2A input, PoE (IEEE802.3af)(Class 0)

Mobile Monitoring

RMEye Pro (iOS & Android)

Dimensions

180mm x 70mm x 70mm

Weight

≤1.0 KGs (No HDD)

Ingress Protection

IP67

Certifications

CE, FCC, RoHS
