Parameter

Details

Model

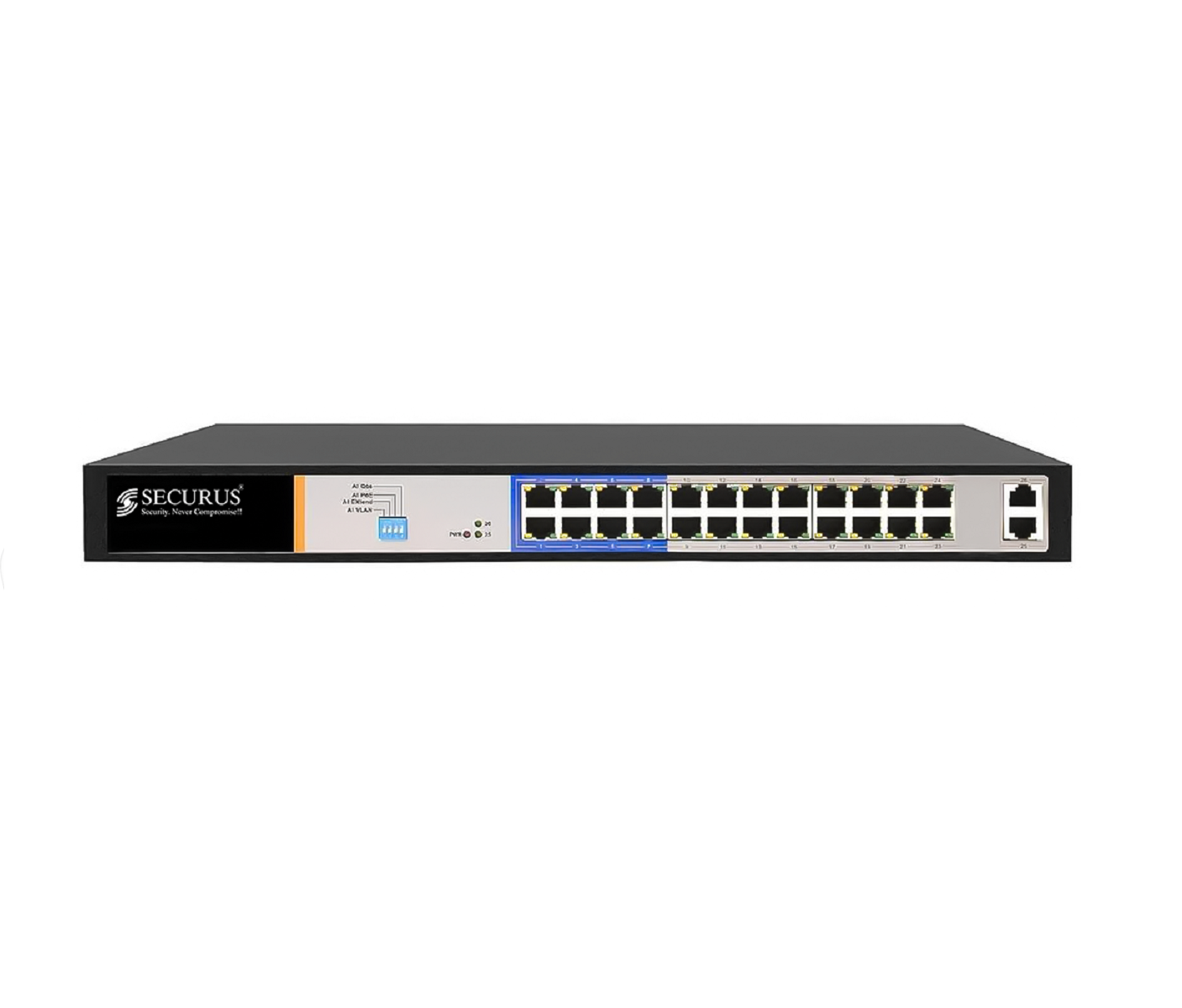

SS-N24EP-C2

Make

SECURUS

Network Ports

1~24 Port : 10/100Mbps POE RJ45 Port

Uplink Port:

2 x 10/100/1000Mbps non POE RJ45 Port

2 x Gigabit SFP port

Transmission Distance

1~24 Port : 100m Mtrs @ 100Mbps;

250Mtrs @ 10Mbps

Uplink Port : 100m

Transmission Media

1~24 Port : Cat5e/6 standard UTP cable,

Uplink Port COMBO: Cat5e/6 standard UTP cable

POE Standard

IEEE802.3i, IEEE802.3u, IEEE802.3x, IEEE802.3af/at/ab, IEEE802.3 af/at Standard

POE Power Supply Method

End-Span Method

POE Power Supply Watt

Each Port ≤ 30W, whole unit ≤ 300W

Network Standard

IEEE802.3  10BASE-T,  IEEE802.3u

100BASE-TX/FX, IEEE802.3az, IEEE802.3z, IEEE802.3ab

Swap Mode

Store & Forward

Data Caching Mechanism

4.1 M

MAC Address List

16 K

Power Indicator Light

One Power Light (red)

COMBO port indicator

2 indicator light (green) : 24 port corresponding green light keeps on when the port is well connected,

Blinking when transmitting.

POE indicator

24 POE indicator light (yellow)

Network Port indicator

1~24 port (green light),

keep on when well connected;

Blinking when transmitting data

LCD Display

User-friendly interface, real-time display the system power, PSE POE power and its working conditions

Reset Button

One button. Whole machine will restart while pressing the button

Surge Immunity

Level 3 executive standard: IEC61000-4-5

Whole unit Electronic Protection

Level 3 executive standard: IEC61000-4-2

Power Supply Mode

Power Adaptor

Voltage Range

AC96 ~ 264V

Power Consumption

The device < 15W, POE power supply < 260W

Working Temperature

0˚C ~ 55˚C

Storage Temperature

-40˚C ~ 70˚C

Humidity

0 ~ 95%

Dimensions (L x W x H)

440mm x 297mm x 44.5mm

Color (Chassis)

Black

Weight

About 4.25kg

Mean Time Between Failures (MTBF)

>50000 Hours

Certifications

CE, FCC, RoHS
