Parameter

Details

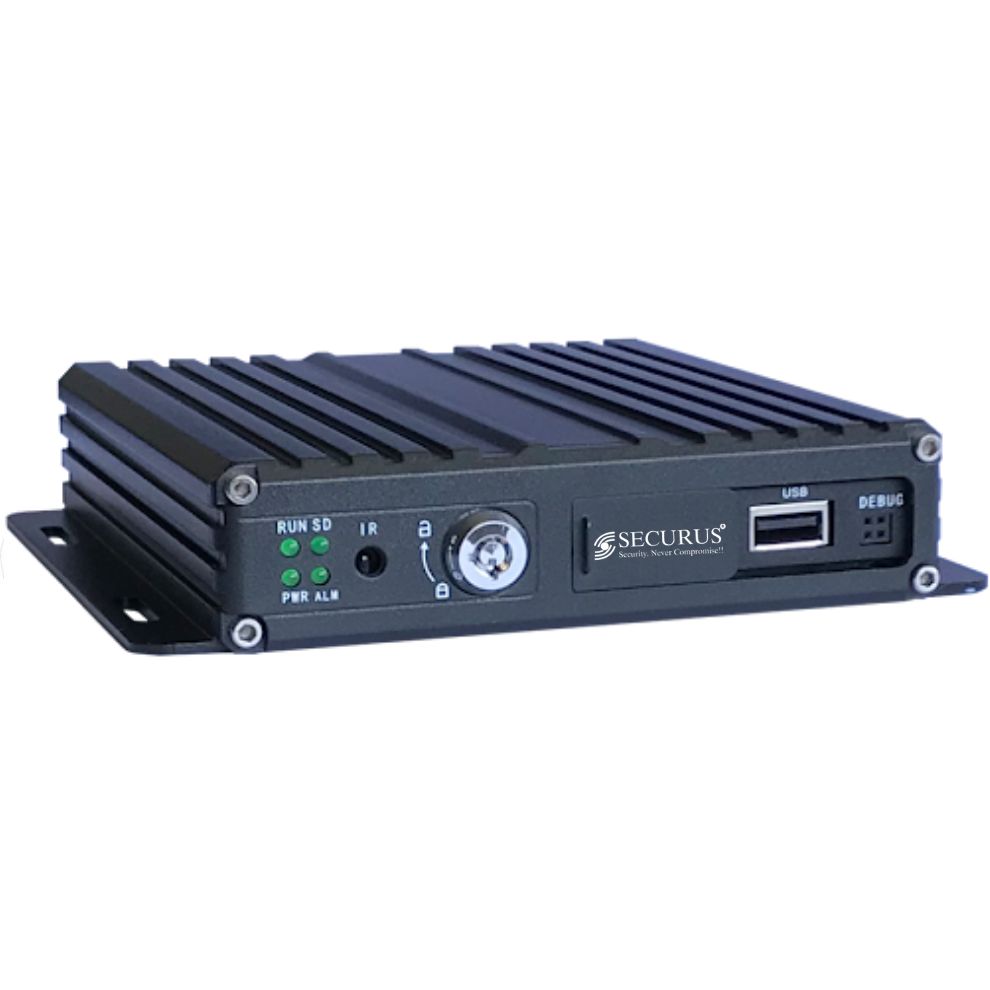

Model

SS-MR04SE-TSHD-M2

Make

SECURUS

Operating System

Embedded Linux OS

Operating Interface

Graphic User Interface

Password Security

User Password / Admin Password

Video Standard

PAL / NTSC

Video Compression

H.265, H.264

Video Resolution

1080P/720P/960H/D1/CIF

Playback Resolution

1080P/720P/960H/D1/CIF

Combination Mode

4Ch flexible configuration

Decoding Ability

4ch 1080P

Recording Quality

1 ~ 6 Levels Optional

Image Display

Single/Quad display optional

Audio Compression

G.711A, G.711U, G.726

Recording Mode

Video; Audio Video

Recording Mode

Automatic / Alarm

Video Bitrate

Max : 4096 Kbps

Audio Bitrate

Max : 8 Kbps

Storage Media

SD Card

Search Mode

Channel Type / Recording Type

Local Playback

Support Max Local 4Ch

Playback Mode

File Playback

Upgrade Mode

Manual/Automatic/Remote

Upgrading Method

USB Disk, SD Card

AV Input

4Ch Aviation Interface

AV Output

1ch VGA video output,

1ch M12 aviation interface

Alarm Input

4 digital inputs

(4 Positive/Negative trigger)

Hot Swapping

Supported

SD Card

1 x SDXC High Speed Card

(Max : 256GB)

USB Interface

1 x USB 2.0

Ignition Input

1 ACC Signal

USB Supported

USB Mouse

LED Indication

PWR / RUN

SD Card Lock

1

Disk Lock

1

Debug Port

1

GPS/BD

Support Detecting antenna Plug in/Unplug/Short Circuit

Power Input

9V ~ 36V DC

Power Output

5V 300mA

Power Consumption

3.5 W (excluding peripherals)

Working Temperature

-20˚C ~ +70˚C

Storage Consumption

H.265 720P : 270 MB/Hour/Channel

H.264 720P: 510MB/Hour/Channel

Dimensions

140mm x 153mm x 31mm
