Parameter

Details

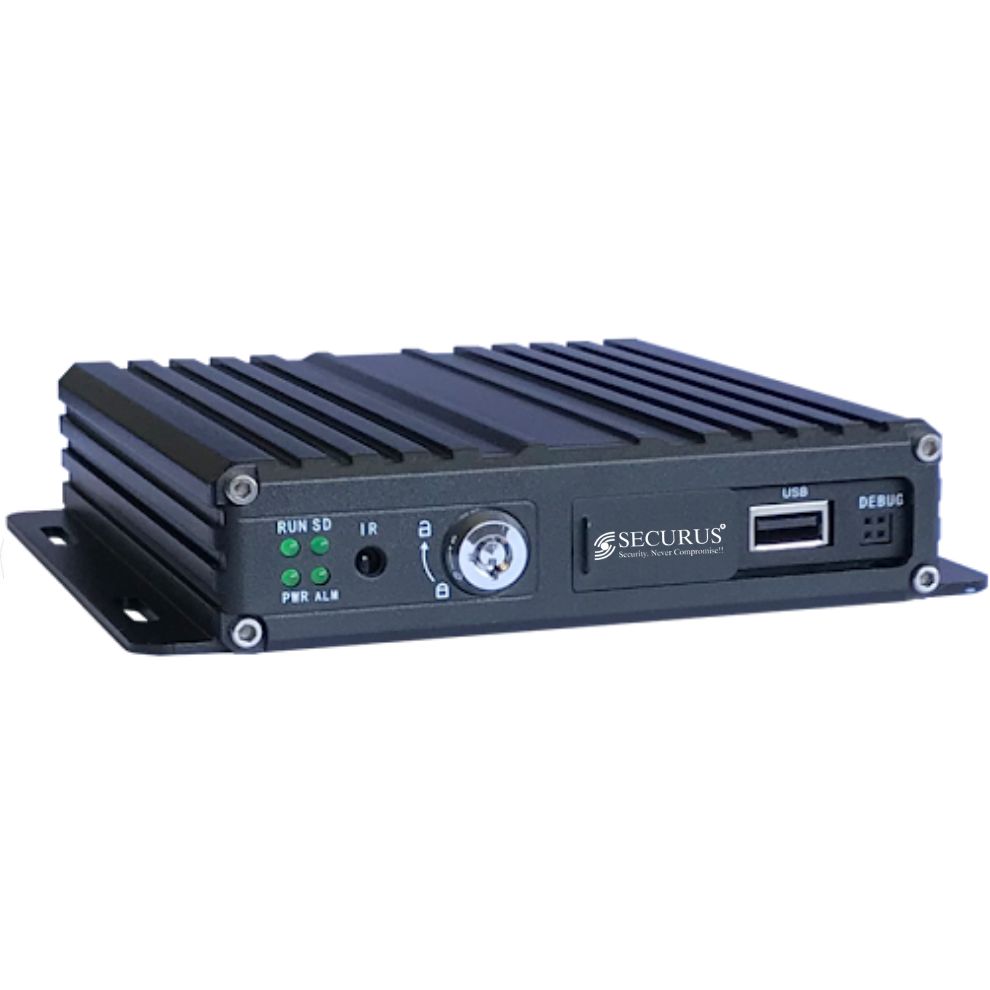

Model

SS-MR04NV-TSHD-M2

Make

SECURUS

Operating System

Embedded Linux OS

Operating Interface

Graphic User Interface, Support mouse & remote control

Password Security

User Password / Admin Password

Video Standard

PAL / NTSC

Video Compression

H.265+/H.265/H.264+/H.264

Video Resolution

1080P/720P/960H/D1/CIF

Playback Resolution

1080P/720P/960H/D1/CIF

Decoding Ability

4ch 1080P

Recording Quality

1 ~ 6 Levels Optional

Image Display

1x1; 2x2

Audio Compression

G.711A, G.711, G.726, MG.726, ADPCM, IMA

Recording Mode

Video; Audio Video

Recording Mode

Manual / Alarm

Video Bitrate

Max : 4096 Kbps

Audio Bitrate

Max : 8 Kbps

Storage Media

SD Card

Search Mode

Channel Type / Recording Type /

Alarm Type

Playback Mode

File Playback

Upgrade Mode

Manual/Automatic/Remote/

Emergency Recover

AV Input

4Ch 4pin Aviation + 1Ch 6pin Aviation for IPC

AV Output

1ch VGA video output, 1ch aviation AV output

VGA Output

Yes

Alarm Input

4 Input

Hot Swapping

Supported

SD Card

1 x SDXC High Speed Card (Max : 512GB)

USB Interface

1 x USB 2.0

USB Supported

USB Mouse

Ignition Input

1 ACC signal

UART

1 LVTT Level

LED Indication

PWR / RUN / SD/ ALM

Ethernet

1 x 6 pin aviation to RJ45 (10M/100M) 750mA@12V

IR

1

RS232

N/A

TTL

1

RS485

N/A

Disk Lock

1

Debug Port

1

GPS/BD/GLONASS

Support detecting antenna Plug-in/Unplug/Short Circuit

2G/3G/4G

Supports CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE

Wifi

802.11b/g/n, 2.4Ghz

Power Input

8V ~ 36V DC

Power Output

5V 300mA

Power Consumption

Max: 18 Watts@12V 1.5A @24V 0.75A

Working Temperature

-20˚C ~ +70˚C

Storage

1080P 1G/h/ch

720P 0.5G/h/channel

960H 0.38G/h/channel

Dimensions

142mm x 153mm x 33mm

Certificate

CE, FCC
