Parameter

Details

Model

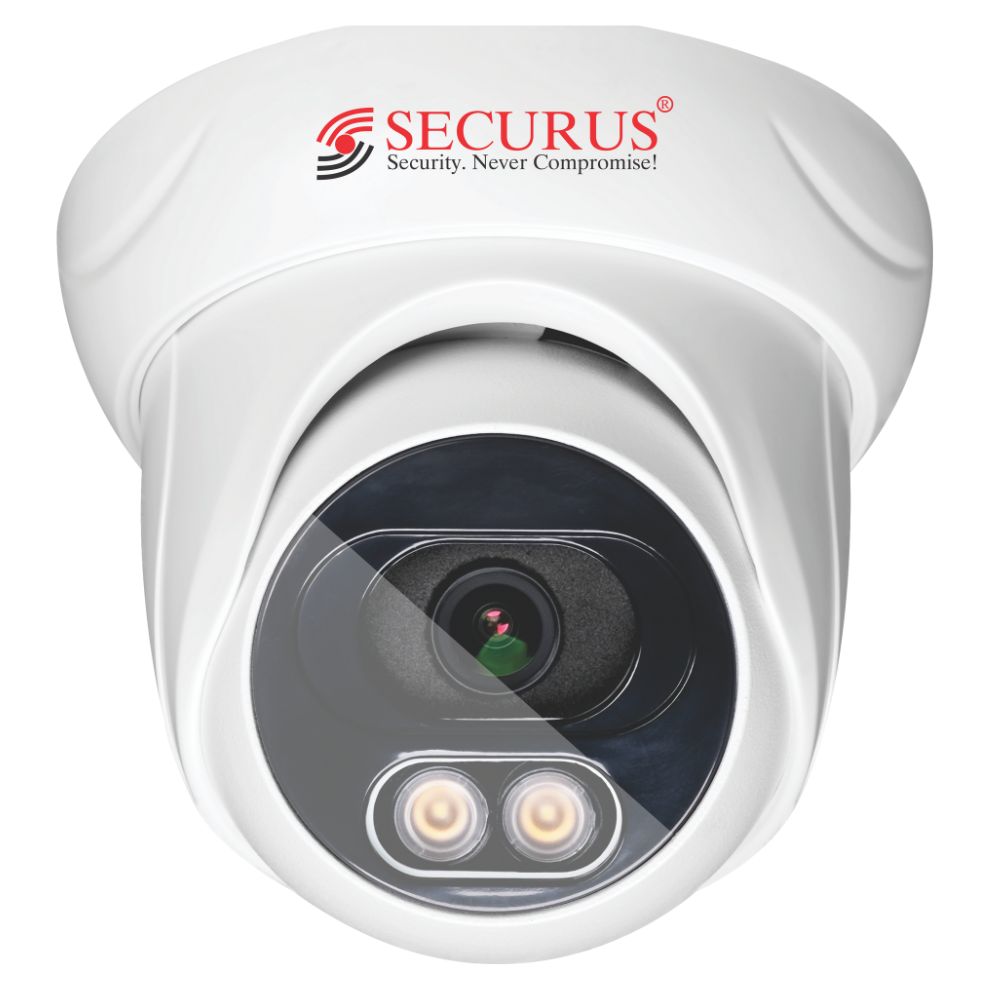

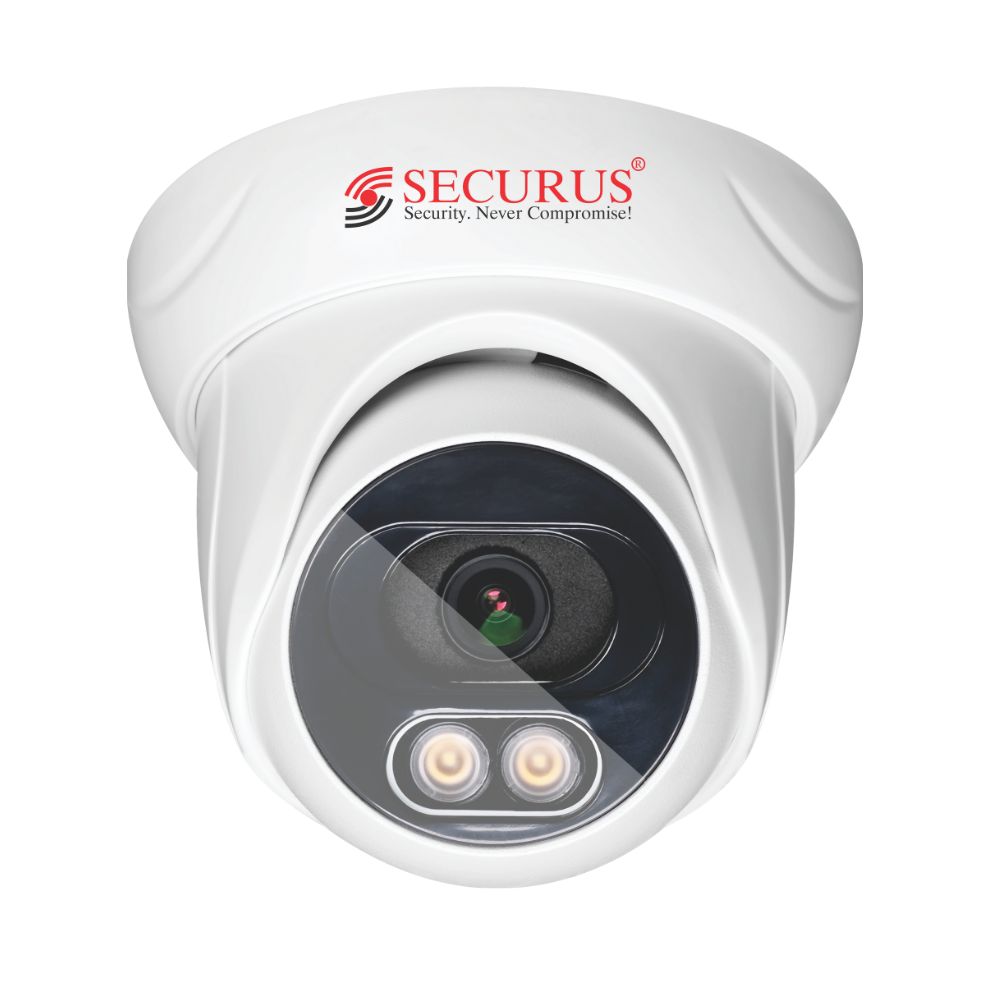

SS-15DXP-TPCSD-M5(S)

Make

SECURUS

Product Range

Utility Range

Image Sensor

1/2.5" 5 Megapixel Image Sensor

TV System

PAL/NTSC

Video Standard

Compliance with HD-TVI Colorsense

Technology

Effective Pixel

2608 x 1952 Pixels

Video Frame Rate

2608 x 1952 Pixels @ 20FPS

Video Output

1 x BNC Video Out

Video Output Format

HD-TVI, CVI, AHD, CVBS

Audio

Built in coaxial audio

Lens Mount

3.6mm/4.0mm/6.0mm HD Lens

Day/Night

Auto(ICR)/Color/BW

BLC

Auto

AWB

Auto

SNR

≥50db

Distance

20 ~ 30 Meters

LED Wavelength

2 White LED

Minimum Illumination

0.1 Lux/ F1.2 (AGC ON)

Noise Reduction

2D/3D

Synchronization

Internal

Electronic Shutter Speed

1/25 - 1/50,000 seconds

Transmission

500 Meters @ 75-3 Coaxial Cable

Power Supply

12V DC ±10%

Operation Temperature

-10 to +60 deg. C (Humidity: 90% max)

Certifications

CE, FCC, RoHS
