Parameter |
Details |
|
Model |

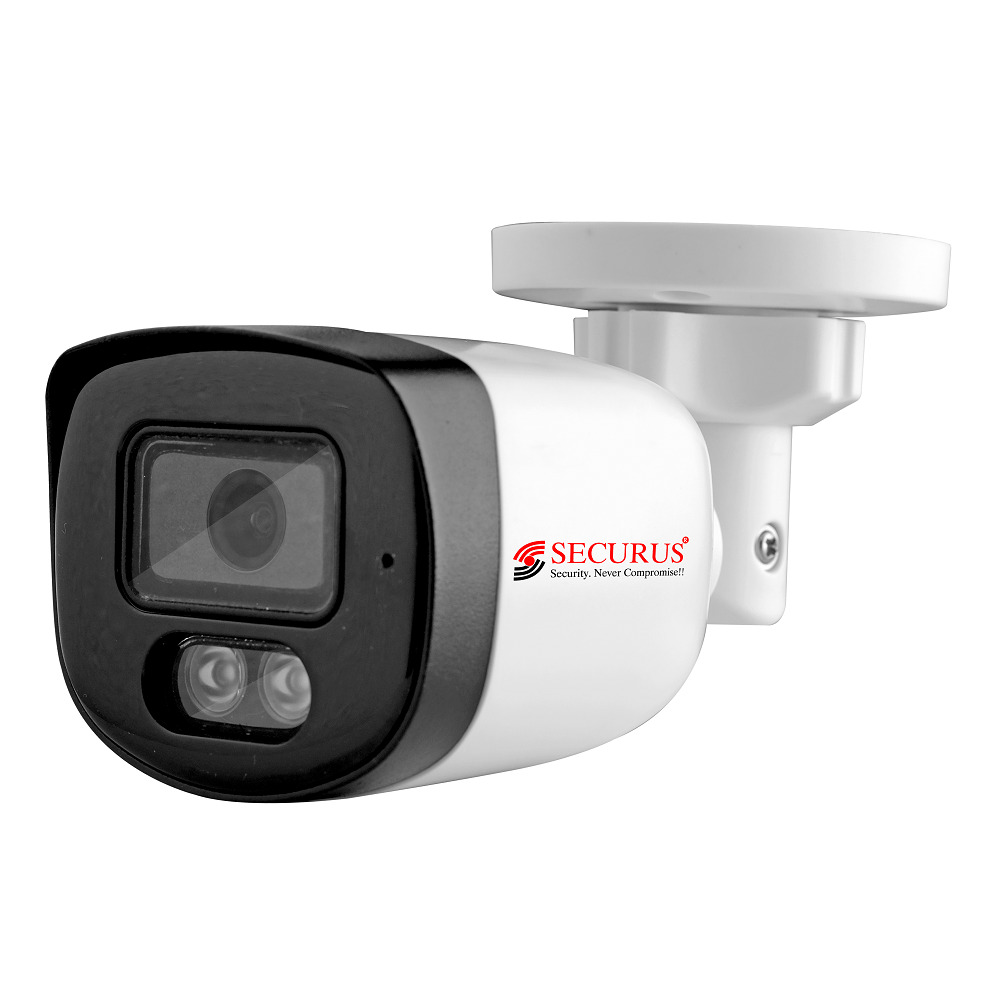

SWATAK UNBC04ML0600-HM |
|
Make |
SECURUS |
|
Camera |
|
|
Image Sensor |
1/2.8" Progressive Scan CMOS |
|
Max. Resolution |
2568(H) x 1448(V) (4MP) |
|
Min. Illumination |
Color: 0.002 Lux @ (F1.4, AGC ON), |
|
Shutter Time |
1/25 - 1/100000 |
|
Day & Night |
IR cut filter |
|
Lens |
|
|
Lens Type |
Fixed focal lens, 6.0mm |
|
Focal Length & FOV |
6.0 mm, horizontal FOV 50°, vertical FOV 29°, diagonal FOV 56° |
|
Lens Mount |
M12 |
|
Iris Type |
Fixed |
|
Aperture |
F1.0 |
|
DORI |
|
|
DORI |
6.0 mm: D: 55 m, O: 21 m, R: 11 m, I: 5 m |
|
Illuminator |
|
|
Supplement Light Type |
IR |
|
Supplement Light Range |
Up to 30 m |
|
Smart Supplement Light |
Yes |
|
IR Wavelength |
850 nm |
|
Video |
|
|
Streaming Capability |
Four Streams |
|
Main Stream |
4MP (2560 x 1440) @25 fps |
|
Sub-Stream |
720P (1280 x 720), D1 (720 x 576), |
|
Third Stream |
D1 (720 x 576), VGA (640 x 480), |
|
Fourth Stream |
D1 (720 x 576), VGA (640 x 480), |
|
Video Compression |
H.265+/H.265/H.264+/H.264 |
|
Video Bit Rate |
128Kbps ~ 8192Kbps |
|
Privacy Mask |
Up to 4 areas |
|
Bit Rate Control |
CBR, VBR |
|
H.264/H.265 Profile |
Baseline Profile, Main Profile, High Profile |
|
Video Quality |
Ultra, High, Balanced, Standard, Economy |
|
Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
|
Region of Interest (ROI) |
1 fixed region for main stream and sub-stream |
|
Audio |
|
|
Audio Compression |
F/W Audio CODEC AEC/ANR and ALC |
|
Audio Bit Rate |
64 Kbps |
|
Audio Sampling Rate |
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
|
Environment Noise Filtering |
Yes |
|
Network |
|
|
Protocols |
TCP/IPv4/IPv6, HTTP, HTTPs, QoS, DHCP, DNS, Email, RTP, RTCP, RTSP/RTSPs, SNMP, NTP, PPPOE, SMTP, NTP, TLS/SSL, SFTP, ICMP, IGMP, ARP, UDP, 802.1x, ONVIF |
|
Simultaneous Live View |
Up to 6 channels |
|
API |
Open Network Video Interface (Profile S, Profile G, Profile T, Profile M), ISAPI, SDK, ISUP |
|
User/Host |
Up to 32 users |
|
Smooth Streaming |
Yes |
|
Security |
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, All data, including sensitive data, is encrypted with AES 256 and RSA 2048 |
|
Client |
SWATAK Video Management Software (VMS) |
|
Web Browser |
Chrome, Mozilla, Firefox, Opera |
|
Image |
|
|
Image Parameters Switch |
Yes |
|
Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
|
Day/Night Switch |
Day, Night, Auto, Schedule |
|
Wide Dynamic Range (WDR) |
≥ 140 dB |
|
Signal to Noise Ratio (SNR) |
≥ 45 dB |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Privacy Mask |
Yes |
|
Interface |
|
|
Ethernet Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
|
Built-in Microphone |
Yes |
|
Alarm In/Out |
1 Channel In / 1 Channel Out |
|
Event |
|
|
Smart Event |
Video Masking Detection |
|
Basic Event |
Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
|
Linkage |
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning |
|
Deep Learning Function |
|
|
Face Capture |
Yes |
|
Perimeter Protection |
Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) |
|
General |
|
|
AI Functions |
Face Detection, Human Detection, People Counting, On-Duty Violation, Vehicle Detection, Vehicle Counting, Parking Violation, Smart Motion Detection, Line Crossing, Wrong-Side Vehicle Direction, Video Blind |
|
Power |
12V DC ± 25%, 0.5 A, max. 6 W, |
|
Material |
Semi Metal |
|
Storage Conditions |
-30°C to +85°C (-22 °F to 185 °F). |
|
Startup and Operating Conditions |
-20°C to +80°C (-4 °F to 176 °F). |
|
Humidity |
0 to 90% RH non-condensing |
|
MAC Address |
OEM Registered |
|
General Function |
Anti-banding, mirror, privacy mask, flash log, password reset via email, pixel counter |
|
Protection |
IP67 (NABL Report Available) |
|
Certification |
ISO 9001:2015, ISO 14001:2015, ISO 45001:2018, ISO/IEC 27001:2022, CE, FCC, RoHS, BIS-ER, STQC Approved, NABL Test Report |
|
HTTPs Certificate |
15 Years Certificate with Camera |
