Full Gigabit

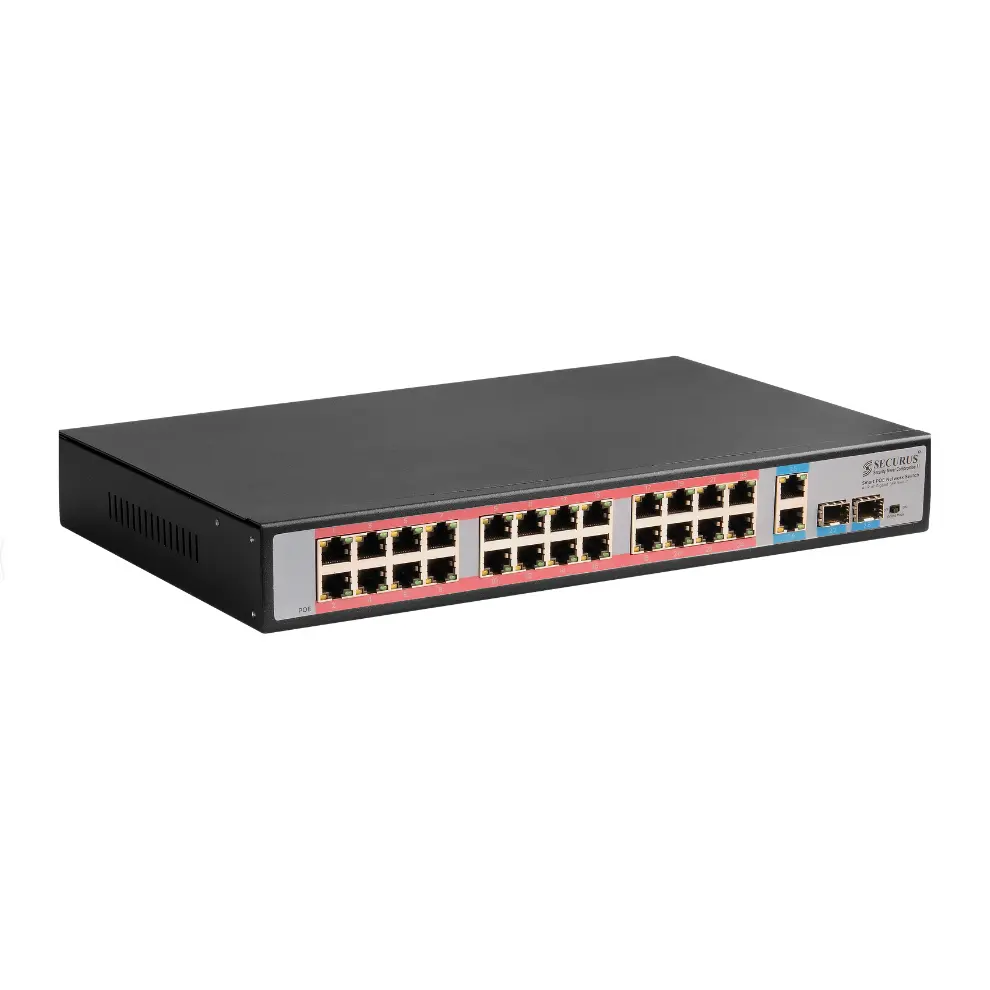

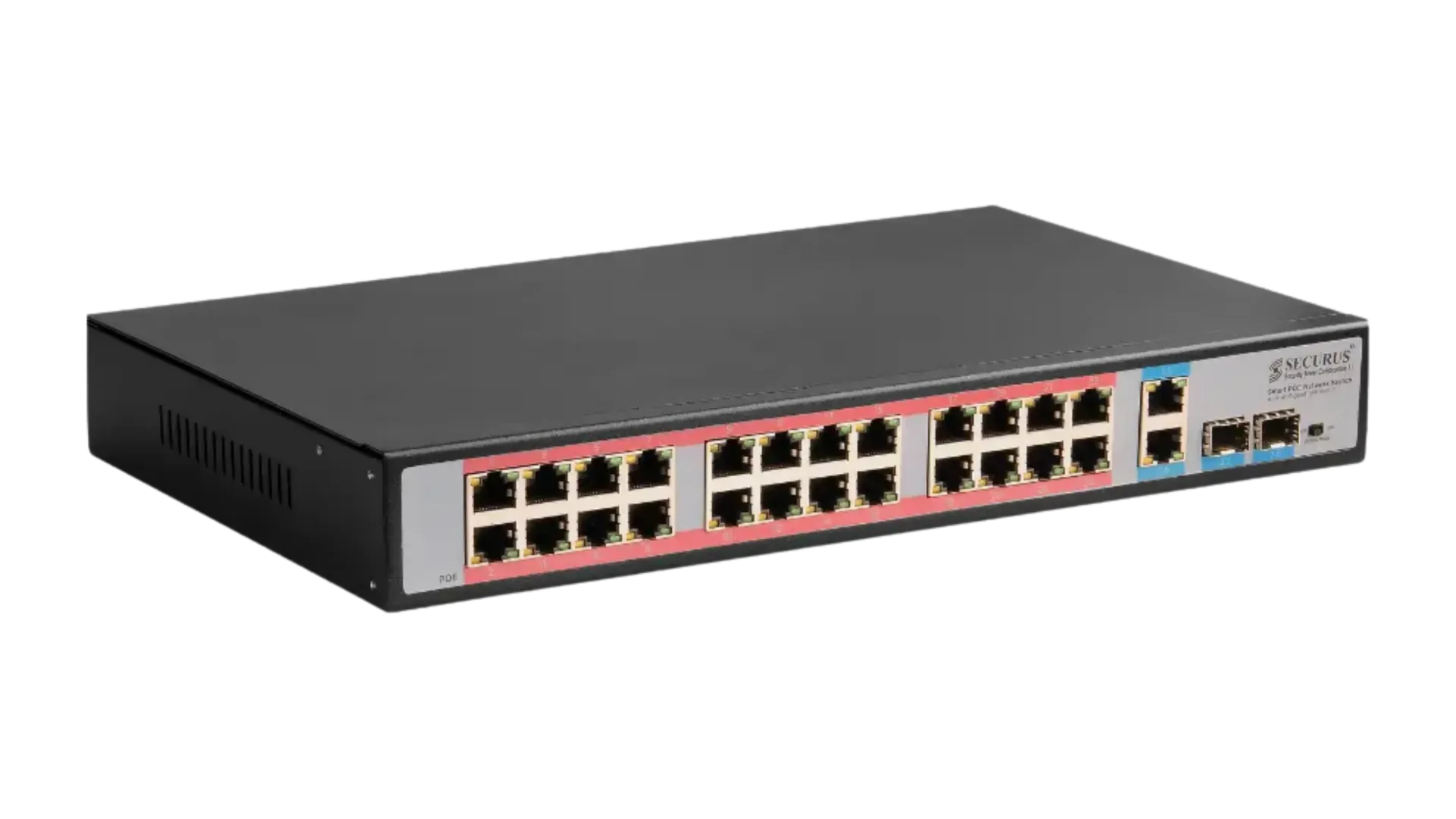

SS-N24GP-G2-S2

SS-N24GP-G2-S2

24 Port Full Gigabit POE Switch

Download Datasheet

₹ 0.00 ₹ 0.00

  • POE Ports
  • POE Power Budget
  • SFP Ports
POE Ports 24 Ports
POE Power Budget 300 Watts
SFP Ports 2 Ports
SS-N24GP-G2-S2

Technical Specifications

Every performance detail, organized for faster product evaluation.

High-Performance PoE Connectivity

Equipped with 4 Ethernet PoE ports and 2 uplink ports, the switch supports smooth data transmission up to 100 meters. Each PoE port delivers up to 30W of power, ensuring stable connectivity and efficient power delivery to connected IP cameras or devices.

Reliable Power over Ethernet (PoE)

Built on the IEEE802.3 af/at PoE standard with End-Span power supply, this switch provides a reliable power source without separate adapters. It simplifies installation and reduces cabling complexity for surveillance and networking setups.

Smart Network Management

Featuring VLAN switch control, store & forward mode, and a 448K data caching mechanism, the switch ensures smooth packet transmission, reduced latency, and enhanced network stability. Ideal for small to medium-scale security networks.

Durable Design & Efficiency

Designed with a built-in power supply, low power consumption (<5W), and a robust chassis, the switch operates efficiently in temperatures from 0°C to +60°C. With an impressive MTBF > 50,000 hours, it guarantees long-lasting, reliable performance..


BasicNetwork PortsPoE SpecificationsNetwork Standards & PerformanceInterface & ControlsPowerEnvironmental

Basic

Model
SS-N04EP-E2-UTL
Make
Securus

Type

24-Port Gigabit PoE Switch with 2 Gigabit Up-link Ports + 2 Gigabit SFP Ports

Chassis Color

Black

Dimensions (L × W × H)

440 × 297 × 44.5 mm

Weight

4.25 g

Mean Time Between Failures (MTBF)

> 50,000 Hours

Network Ports

PoE Ethernet Ports
  24 × 10/100/1000 Mbps RJ45 (PoE)
Uplink Ports
2 × 1000 Mbps RJ45 (Non-PoE)

PoE Ports

100 m @ 100 Mbps / 100 m @ 10 Mbps

SFP Ports

2 × Gigabit SFP

PoE Ports

100 m @ 100 Mbps / 250 m @ 10 Mbps

Uplink Ports

100 m

Transmission Media

Cat5e / Cat6 UTP cable

PoE Specifications

PoE Standard
IEEE802.3i, IEEE802.3u, IEEE802.3x, IEEE802.3af/at/ab
Power Supply Method
End-Span

Maximum Power per Port

≤ 30 W

Total PoE Power Budget

≤ 300 W

Network Standards & Performance

Supported Standards
IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX/FX, IEEE802.3ab, IEEE802.3az, IEEE802.3z
Switching Mode
Store & Forward

Data Caching Mechanism

448 KB

Data Caching Mechanism

4.1 MB

MAC Address Table

16K

Surge Protection

IEC61000-4-5, Level 3

ESD Protection

IEC61000-4-2, Level 3

Interface & Controls

Reset Button
Available
Surge Protection
IEC61000-4-5, Level 3

ESD Protection

IEC61000-4-2, Level 3

Power Indicator

1 × Red LED

PoE Indicators

24 × Yellow LEDs (1 per PoE port)

Network Port Indicators

24 × Green LEDs (steady = connected, blinking = transmitting)

COMBO Uplink Indicators

2 × Green LEDs for up-link ports

LCD Display

User-friendly interface with real-time display of system power, PSE PoE power, and working conditions

Power

Power Supply Mode
Power Adaptor
Voltage Range
AC 96 ~ 264 V

Device Consumption

< 15 W

PoE Power Supply

< 260 W

Environmental

Working Temperature
0°C ~ +55°C
Storage Temperature
-40°C ~ +70°C

Humidity

0 ~ 95%
