Full Gigabit
SS-N04GP-G1-S2

SS-N04GP-G1-S2

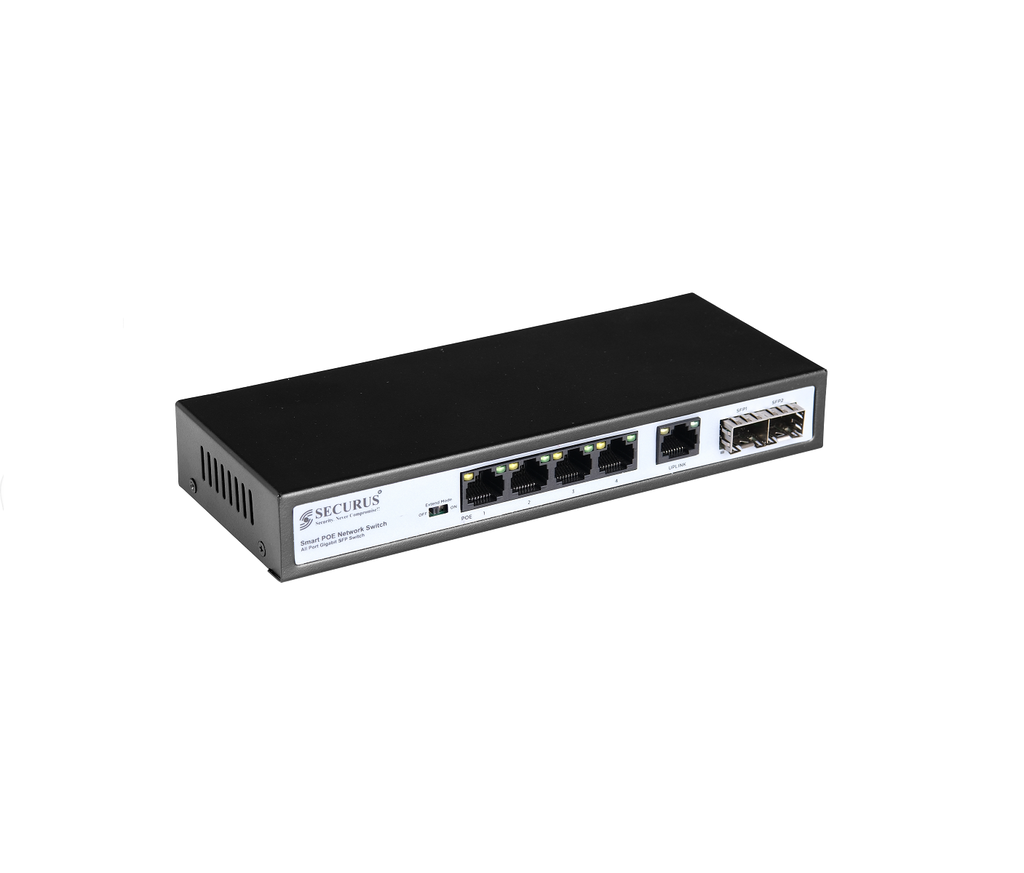

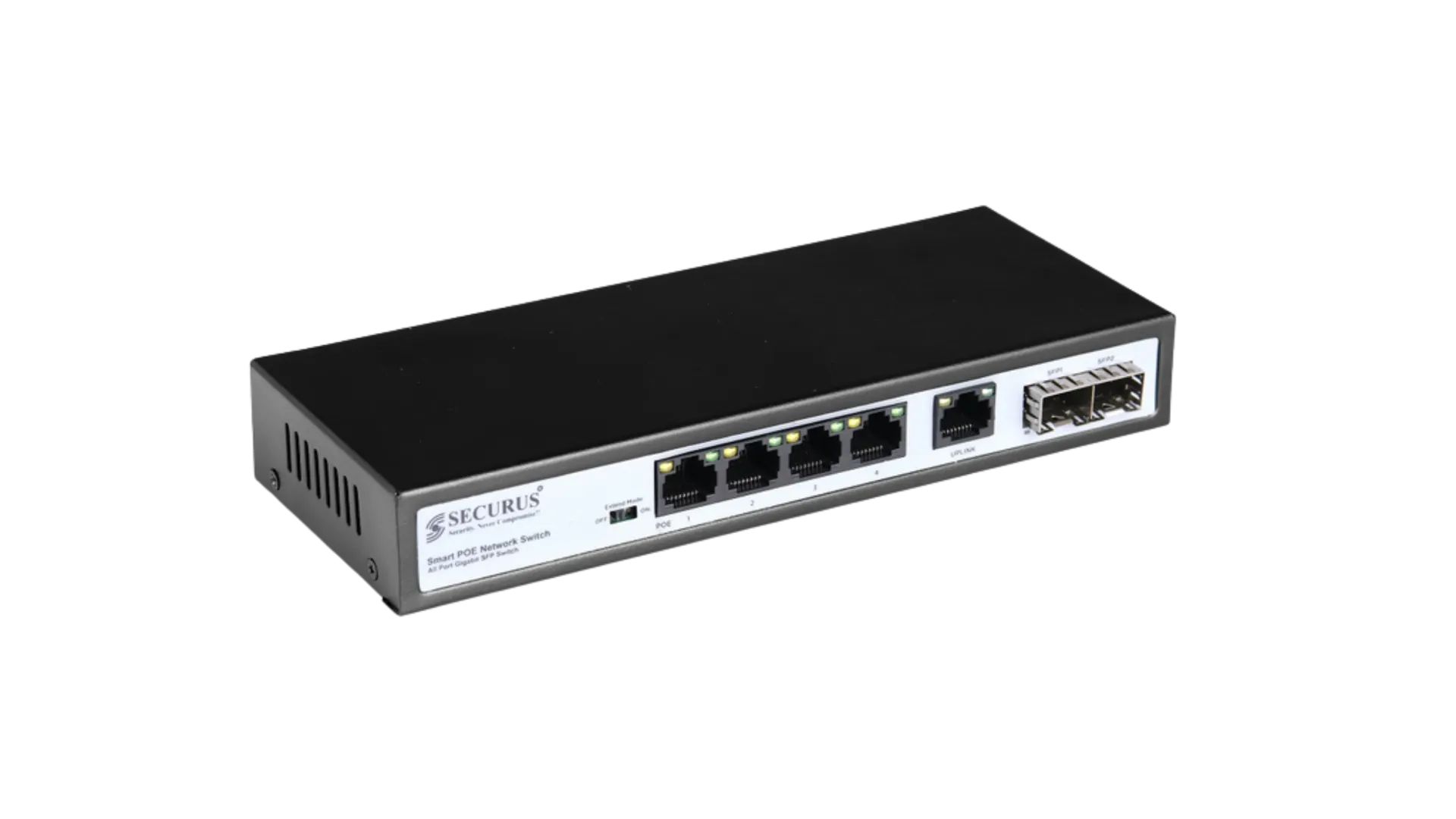

4 Port Fiber POE Switch

Download Datasheet

₹ 0.00 ₹ 0.00

  • POE Ports
  • POE Power Budget
  • SFP Ports
POE Ports 4 Ports
POE Power Budget 60 Watts
SFP Ports 2 Ports
SS-N04GP-G1-S2

Technical Specifications

Every performance detail, organized for faster product evaluation.

BasicNetwork PortsPoE SpecificationsNetwork Standards & PerformanceEnvironmentalGeneral

Basic

MODEL SS-N04GP-G1-S2
MAKE SECURUS
TYPE 4 Ports 10/100/1000 POE + 1 Port 10/100/1000 + 2 SFP Ports
CHASSIS COLOR Black
DIMENSIONS (L × W × H) 160mm x 94mm x 28mm
WEIGHT 425 Grams
MEAN TIME BETWEEN FAILURES (MTBF) >50000 Hours

Network Ports

POE ETHERNET PORTS 4 Gigabit Ports : 10/100/1000 Mbps
UPLINK PORTS 1 Gigabit Up-link Port: 10/100/1000 Mbps
SFP PORTS 2 Gigabit SFP ports: 10/100/1000Mbps
POE PORTS 100 Mtrs @ 1000 Mbps; 250 Mtrs @ 10Mbps
UPLINK PORTS 100 Meters
TRANSMISSION MEDIA Cat5e/Cat6 Standard UTP Cable

PoE Specifications

POE STANDARD IEEE802.3 af/at Standard
POWER SUPPLY METHOD End-Span Method
MAXIMUM POWER PER PORT ≤30W
TOTAL POE POWER BUDGET 60W

Network Standards & Performance

SUPPORTED STANDARDS IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3az, IEEE802.3z
SWITCHING MODE Store & Forward
DATA CACHING MECHANISM 448K
MAC ADDRESS TABLE 16 K
RESET BUTTON Available
VLAN SWITCH Available

Environmental

WORKING TEMPERATURE -10˚C ~ 60˚C
STORAGE TEMPERATURE -40˚C ~ 75˚C
HUMIDITY 0 ~ 95%

General

POWER SUPPLY MODE Power Adaptor
VOLTAGE RANGE DC48V ~ 56V
DEVICE POWER CONSUMPTION Device: <5W ; Adaptor: <60W
CERTIFICATION CE, FCC, RoHS
