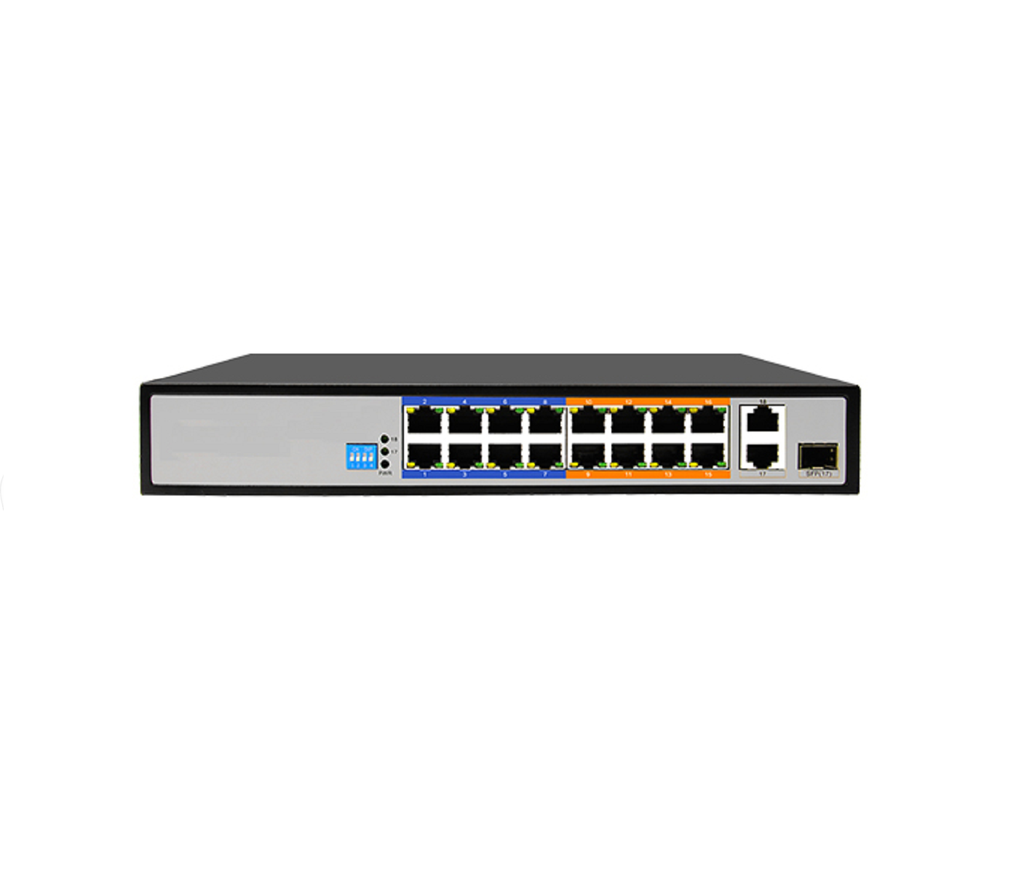

SS-N16EP-G2-S1

SS-N16EP-G2-S1

16 Port Fiber POE Switch

Download Datasheet

₹ 0.00 ₹ 0.00

  • POE Ports
  • POE Power Budget
  • SFP Ports
POE Ports 16 Ports
POE Power Budget 200 Watts
SFP Ports 1 Ports
SS-N16EP-G2-S1

Technical Specifications

Every performance detail, organized for faster product evaluation.

BasicNetwork PortsPoE SpecificationsNetwork Standards & PerformanceEnvironmentalGeneral

Basic

MODEL SS-N16EP-G2-S1
MAKE SECURUS
TYPE 16 Ports 10/100 Mbps POE + 2 Ports 10/100/1000 Mbps Uplink + 1 SFP Port
CHASSIS COLOR Black
DIMENSIONS (L × W × H) 285mm x 180mm x 44mm
WEIGHT About 4.25kg
MEAN TIME BETWEEN FAILURES (MTBF) >50000 Hours

Network Ports

POE ETHERNET PORTS 1~16 Port : 10/100Mbps POE RJ45 Port
UPLINK PORTS 2x10/100/1000Mbps Non-POE RJ45 port
SFP PORTS 1x10/100/1000Mbps Gigabit SFP port
POE PORTS 100m Mtrs @ 100Mbps; 250Mtrs @ 10Mbps
UPLINK PORTS 100m
TRANSMISSION MEDIA 1~16 Port : Cat5e/6 standard UTP cable, Uplink Port COMBO: Cat5e/6 standard UTP cable

PoE Specifications

POE STANDARD IEEE802.3i, IEEE802.3u, IEEE802.3x, IEEE802.3af/at/ab, IEEE802.3 af/at Standard
POWER SUPPLY METHOD End-Span Method
MAXIMUM POWER PER PORT ≤ 30W
TOTAL POE POWER BUDGET whole unit ≤ 200W

Network Standards & Performance

SUPPORTED STANDARDS IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX/FX, IEEE802.3az, IEEE802.3z, IEEE802.3ab
SWITCHING MODE Store & Forward
DATA CACHING MECHANISM 4.1 M
MAC ADDRESS TABLE 16 K
RESET BUTTON One button. Whole machine will restart while pressing the button/ Support external reset button
BANDWIDTH 7.2Gbps
PACKET FORWARDING RATE 5.36Mbps

Environmental

WORKING TEMPERATURE 0˚C ~ 40˚C
STORAGE TEMPERATURE -40˚C ~ 70˚C
HUMIDITY 10% ~ 90%

General

POWER SUPPLY MODE Built in Power Supply
VOLTAGE RANGE AC96 ~ 264V
POWER INPUT 100-250V /50-60Hz
DEVICE POWER CONSUMPTION The device <15W, POE power supply <260W
POWER INDICATOR LIGHT One Power Light (red)
COMBO PORT INDICATOR 2 indicator light (green) : 17/18port corresponding green light keeps on when the port is well connected, Blinking when transmitting.
POE INDICATOR 16 POE indicator light (yellow)
NETWORK PORT INDICATOR 1~16 port (green light), keep on when well connected; Blinking when transmitting data
LCD DISPLAY User-friendly interface, real-time display the system power, PSE POE power and its working conditions
POE PIN 1/2/4/5(+)，3/6/7/8(-)
SINGLE PORT MAX OUTPUT POWER 1-4 Port 90W; 5-8port 30W ; Max power supply:120W
CERTIFICATION CE, FCC, RoHS
