Basic

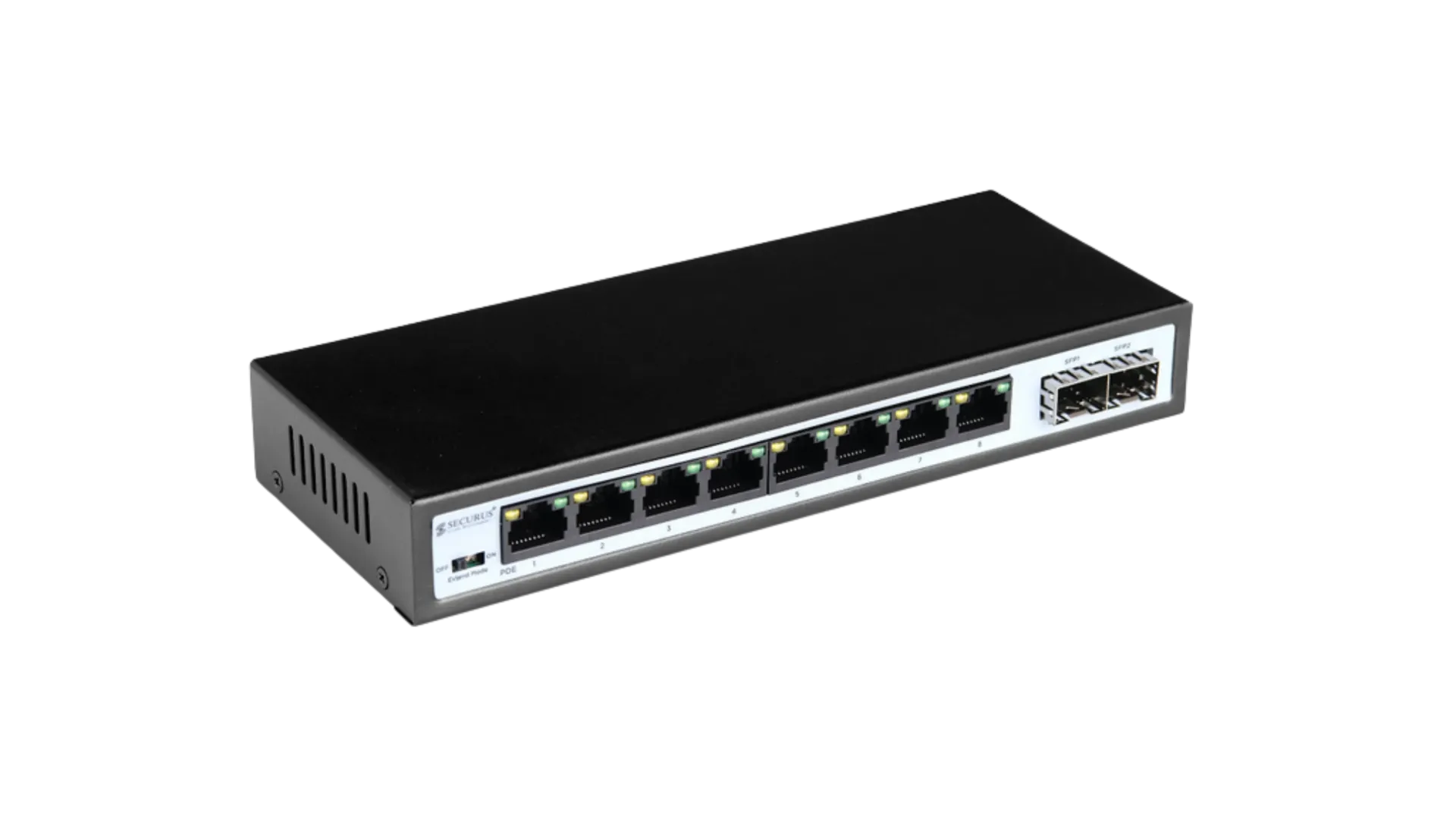

| MODEL | SS-N08GP-S2 |
| MAKE | SECURUS |
| TYPE | 8 Ports 10/100/1000 POE + 2 SFP Ports |
| CHASSIS COLOR | Black |
| DIMENSIONS (L × W × H) | 220mm x 105mm x 28mm |
| WEIGHT | 612 Grams |
| MEAN TIME BETWEEN FAILURES (MTBF) | >50000 Hours |
Network Ports
| POE ETHERNET PORTS | 8 Gigabit Ports : 10/100/1000 Mbps |
| SFP PORTS | 2 Gigabit SFP Ports: 1000 Mbps |
| POE PORTS | 100 Mtrs @ 1000 Mbps; 250 Mtrs @ 10 Mbps |
| TRANSMISSION MEDIA | Cat5e/Cat6 Standard UTP Cable |
PoE Specifications
| POE STANDARD | IEEE802.3 af/at Standard |
| POWER SUPPLY METHOD | End-Span Method |
| MAXIMUM POWER PER PORT | ≤30W |
| TOTAL POE POWER BUDGET | 120W |
Network Standards & Performance
| SUPPORTED STANDARDS | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3az, IEEE802.3z |
| SWITCHING MODE | Store & Forward |
| DATA CACHING MECHANISM | 1 M |
| MAC ADDRESS TABLE | 16 K |
| RESET BUTTON | Available |
| VLAN SWITCH | Available |
| COMMUNICATION PROTOCOLS | IPv4 and IPv6 Compatible |
Environmental
| WORKING TEMPERATURE | 0˚C ~ 55˚C |
| STORAGE TEMPERATURE | -40˚C ~ 65˚C |
| HUMIDITY | 0 ~ 95% |
General
| POWER SUPPLY MODE | Power Adaptor |
| VOLTAGE RANGE | DC48V ~ 56V |
| DEVICE POWER CONSUMPTION | Device: <5W ; Adaptor: <120W |
| CERTIFICATION | CE, FCC, RoHS |
