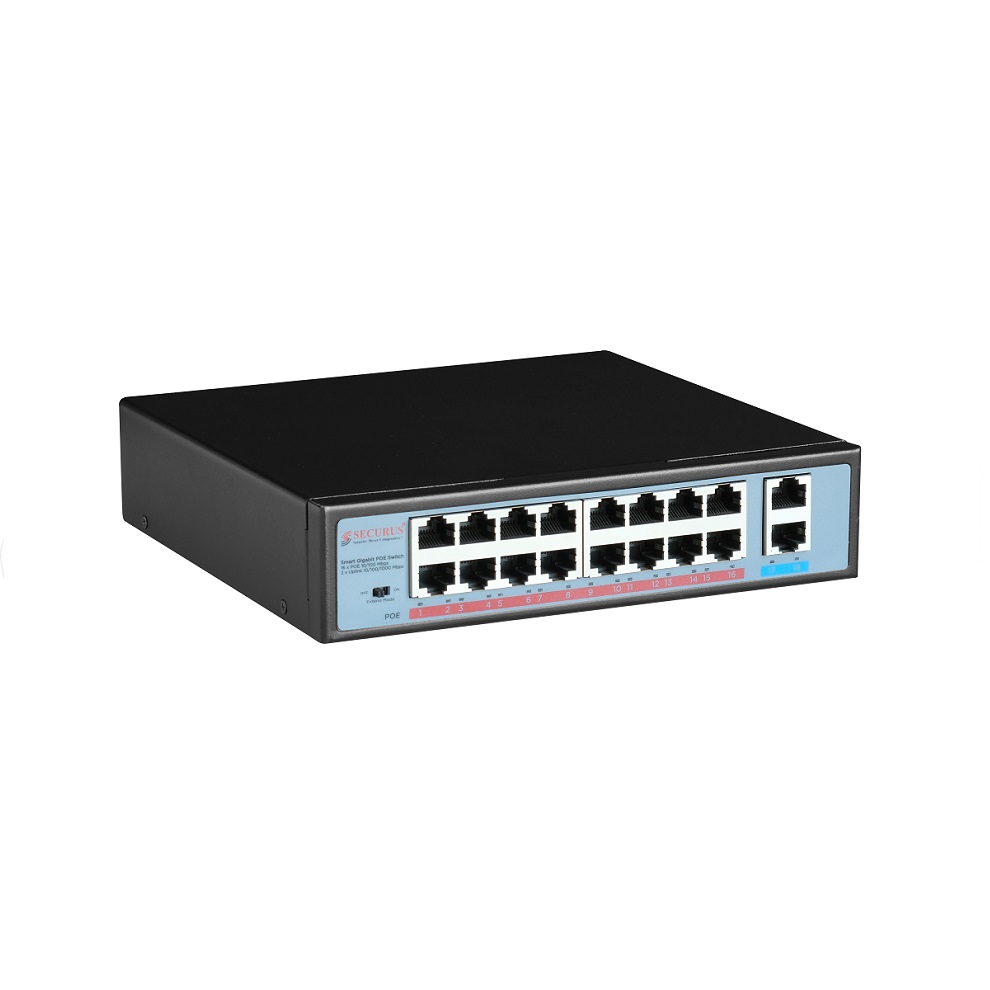

SS-N16EP-G2-UTL

SS-N16EP-G2-UTL

16 Port Utility Series POE Switch

Download Datasheet

₹ 0.00 ₹ 0.00

  • POE Ports
  • POE Power Budget
POE Ports 16 Ports
POE Power Budget 150 Watts
SS-N16EP-G2-UTL

Technical Specifications

Every performance detail, organized for faster product evaluation.

High-Performance PoE Connectivity

Equipped with 4 Ethernet PoE ports and 2 uplink ports, the switch supports smooth data transmission up to 100 meters. Each PoE port delivers up to 30W of power, ensuring stable connectivity and efficient power delivery to connected IP cameras or devices.

Reliable Power over Ethernet (PoE)

Built on the IEEE802.3 af/at PoE standard with End-Span power supply, this switch provides a reliable power source without separate adapters. It simplifies installation and reduces cabling complexity for surveillance and networking setups.

Smart Network Management

Featuring VLAN switch control, store & forward mode, and a 448K data caching mechanism, the switch ensures smooth packet transmission, reduced latency, and enhanced network stability. Ideal for small to medium-scale security networks.

Durable Design & Efficiency

Designed with a built-in power supply, low power consumption (<5W), and a robust chassis, the switch operates efficiently in temperatures from 0°C to +60°C. With an impressive MTBF > 50,000 hours, it guarantees long-lasting, reliable performance.


BasicNetwork PortsPoE SpecificationsNetwork Standards & PerformanceInterface & ControlsPowerEnvironmental

Basic

Model
 SS-N16EP-G2-UTL
Make
Securus

Type

16-Port Fast Ethernet PoE Switch with 2 Gigabit Up-link Ports

Chassis Color

Black

Dimensions (L × W × H)

220 × 105 × 28 mm

Weight

≤ 612 g

Mean Time Between Failures (MTBF)

> 50,000 Hours

Network Ports

PoE Ethernet Ports
 16 × 10/100 Mbps
Uplink Ports
2 × 10/100/1000 Mbps

PoE Ports

100 m @ 100 Mbps / 100 m @ 10 Mbps

Uplink Ports

100 m

Transmission Media

Cat5e / Cat6 UTP cable

PoE Specifications

PoE Standard
 IEEE802.3 af/at
Power Supply Method
End-Span

Maximum Power per Port

≤ 30 W

Total PoE Power Budget

120 W

Network Standards & Performance

Supported Standards
IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3az, IEEE802.3z
Switching Mode
Store & Forward

Data Caching Mechanism

1 MB

MAC Address Table

2K

Bandwidth

5.6 Gbps

Frame Filter & Transfer Rate

  • 10M Port: 14,800 pps
  • 100M Port: 148,800 pps

Communication Protocols

IPv4 / IPv6 Compatible

Interface & Controls

Reset Button
Available
VLAN Switch
Available

Power

Power Supply Mode
Built-In Power Supply

Input Voltage

AC 100–240V, 50–60Hz

Power Consumption
< 10 W (Device Only)

Lightning Protection

6 KV

ESD Protection

8 KV

Environmental

Working Temperature
0°C ~ +60°C
Storage Temperature
-40°C ~ +70°C

Humidity

0 ~ 90%
