Basic

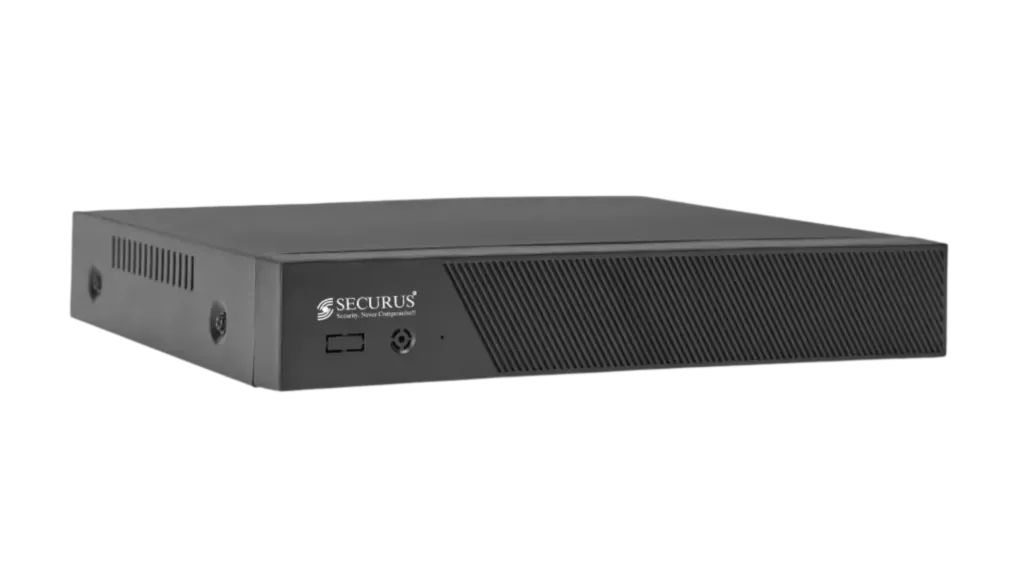

Model | SS-N8006RVA-H1-M5 |
Make | SECURUS |
Product Range | AI Network Video Recorder (NVR) |
Operating System | Embedded Linux |
User Interface | Graphic User Interface (GUI) |
Operation Modes | Preview, Record, Playback, Backup, Network |
Password Security | Multi-level User Management |
ONVIF Protocol | Supported |
Video
Video Input | 6 Channels (supports up to 5MP) |
Video Output | HDMI, VGA |
HDMI | 1 port (up to 4K) |
VGA | 1 port (up to 1080P) |
Video Compression | H.265AI / H.265+ / H.265 / H.264+ / H.264 |
Encoding Resolution | 5MP / 4MP / 3MP / 1080P |
|
Frame Rate | PAL: 1–25 fps | NTSC: 1–30 fps |
Bitrate | 1536 kbps – 3072 kbps |
Stream Type | Video & Audio / Video |
Audio
Audio Input | 1 Channel (BNC line-in) |
Audio Output | 1 Channel (RCA connector) |
Audio Compression | G.711a |
Audio Bitrate | 8–32 kbps |
Two-Way Audio (Voice Talk) | Supported |
Intelligent Functions
Intelligent Functions |
|
Recording & Playback
Recording Modes | Always / Schedule / Alarm / Motion Detection |
Recording Resolution | Up to 5MP |
Realtime Recording | 6 Channels |
Synchronous Playback | Up to 4 Channels |
Search Options | Time / Channel / Event |
Storage
HDD Ports | 1 × SATA |
Max HDD Capacity | 10 TB |
Backup & Network
Backup Mode | USB device / Network |
Dual Stream: | Supported |
Network Port | 1 × RJ45 (10/100/1000 Mbps) |
Network Bandwidth | 80 Mbps Incoming / 80 Mbps Outgoing |
Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP |
|
Mobile Monitoring | RMEye Pro App (Android & iOS) |
Remote Control | Supported |
Firmware Update | USB update / Network update |
USB Ports | 2 × USB2.0, 1 × USB3.0 |
Interface
Power Supply | DC 12V, 2A |
Chassis | Compact 1U |
Network Port | 1 × RJ45 (10/100/1000 Mbps) |
|
Dimensions | 236 mm (W) × 205 mm (L) × 45 mm (H) |
Weight (without HDD) | ≤ 1.0 Kg |
|
Operating Temperature | -10℃ to +55℃ |
Operating Humidity: | 10% – 90% RH (non-condensing) |
Certifications | CE, FCC, RoHS |
