Basic

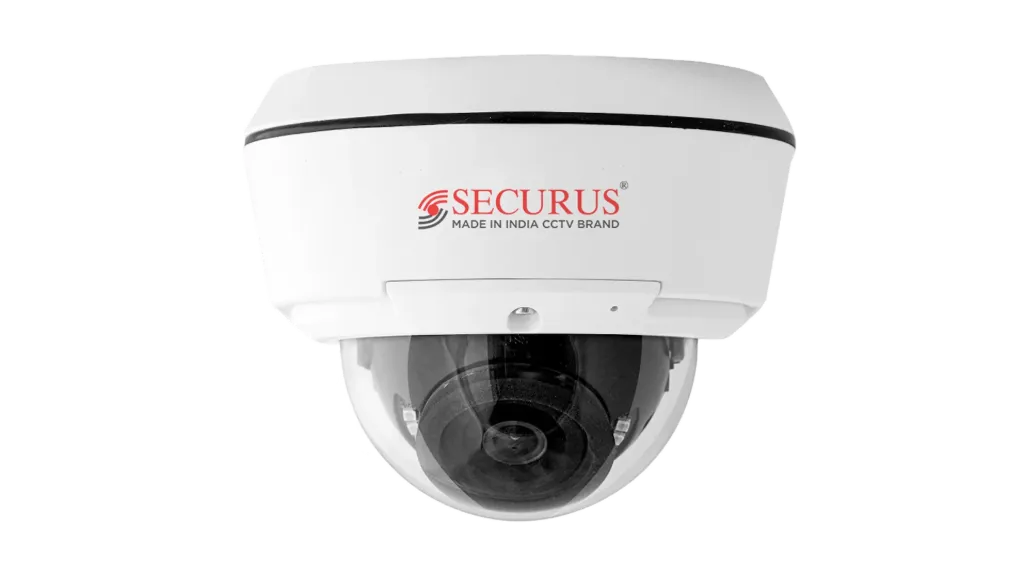

| Model | SWATAK PNVD04ML2713-HMST |
| Make | SECURUS |
| Product Range | 4.0 MP Varifocal AI Network Vandal Dome Camera |
| Video Standard | H.265/H.264 |
Camera
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Effective Pixels | 2568 x 1448 (4MP) |
| Electronic Shutter | Auto/Manual (1/30 - 1/10000) |
| Minimum Illumination | Color: 0.002 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR |
| Day/Night | IR cut filter (Day, Night, Auto, Schedule) |
| BLC/HLC | Supported |
| AWB | Yes (auto white balance adjustable) |
| SNR | ≥ 45 dB |
| WDR | ≥ 140 dB |
Lens
| Lens Type | Varifocal Auto/Manual Focus Lens, 2.7 to 13.55mm |
| Lens Options | 2.7 to 13.55mm |
| Aperture | Fixed |
| Field of View | 2.7 to 13.55mm, horizontal FOV 28.56°, vertical FOV 16.4°, diagonal FOV 33.7° |
| Iris | Fixed |
DORI
| DORI | 2.7 mm | 13.55 mm |
| Detect | 60.8 m | 303.8 m |
| Observe | 24.3 m | 121.5 m |
| Recognize | 12.2 m | 60.8 m |
| Identify | 6.1 m | 30.4 m |
Illuminator
| IR Distance | Up to 80m |
| LED | Smart Supplement Light |
| LED Wavelength | 850 nm |
Video
| Streaming Capability | Quad Streams |
| Frame Rate | 4MP (2560 x 1440) @25 fps |
| Bitrate | 128Kbps ~ 8192Kbps |
| Privacy Mask & ROI | Up to 4 areas; ROI: 1 fixed region for main stream and sub-stream |
Audio
| Microphone & Speaker | Yes (Built-in) |
| Compression | AAC encode/decode(32KHz, 48KHz @192kbps); ADPCM/G.711/G.726; AEC/ANR and ALC |
Network
| Protocols | TCP/IPv4/IPv6, HTTP, HTTPs, QoS, DHCP, DNS, Email, RTP, RTCP, RTSP/RTSPs, SNMP, NTP, PPPOE, SMTP, NTP, TLS/SSL, SFTP, ICMP, IGMP, ARP, UDP, 802.1x, ONVIF |
| Users/Host | Up to 32 users; 3 user levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, All data, including sensitive data, is encrypted with AES 256 and RSA 2048 |
| Enhancements | BLC, HLC, 3D DNR |
| Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Privacy Mask | Yes |
Event
| Events | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| AI Features | Face Detection, Human Detection, People Counting, On-Duty Violation, Vehicle Detection, Vehicle Counting, Parking Violation, Smart Motion Detection, Line Crossing, Wrong-Side Vehicle Direction, Video Blind |
General
| Power | 12V DC ± 25%, 0.5 A, max. 6 W, PoE: IEEE 802.3af/at, Class 3, max. 12W |
| Operating Temp | -20°C to +80°C (-4 °F to 176 °F). |
| Protection | IP67 |
| Certifications | ISO 9001:2015, ISO 14001:2015, ISO 45001:2018, CE, FCC, RoHS, BIS-ER, STQC Approved, NABL Test Report |
