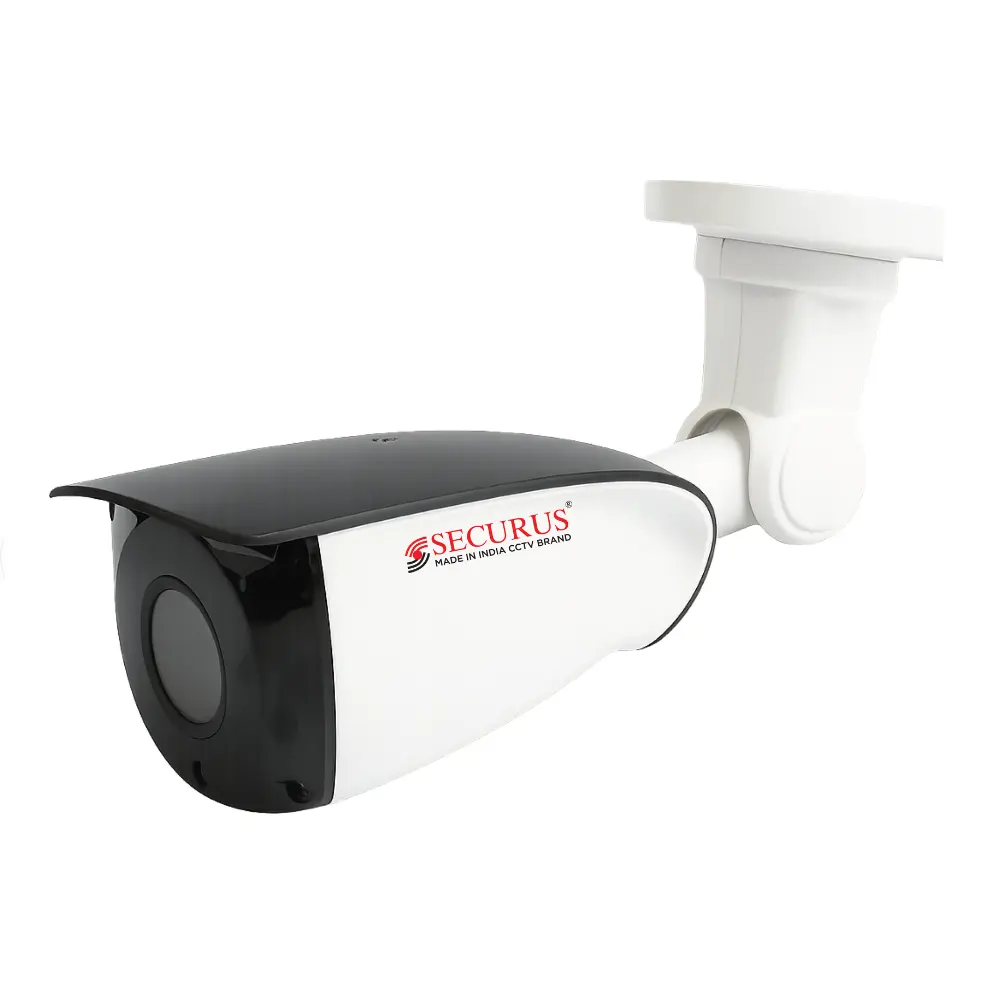

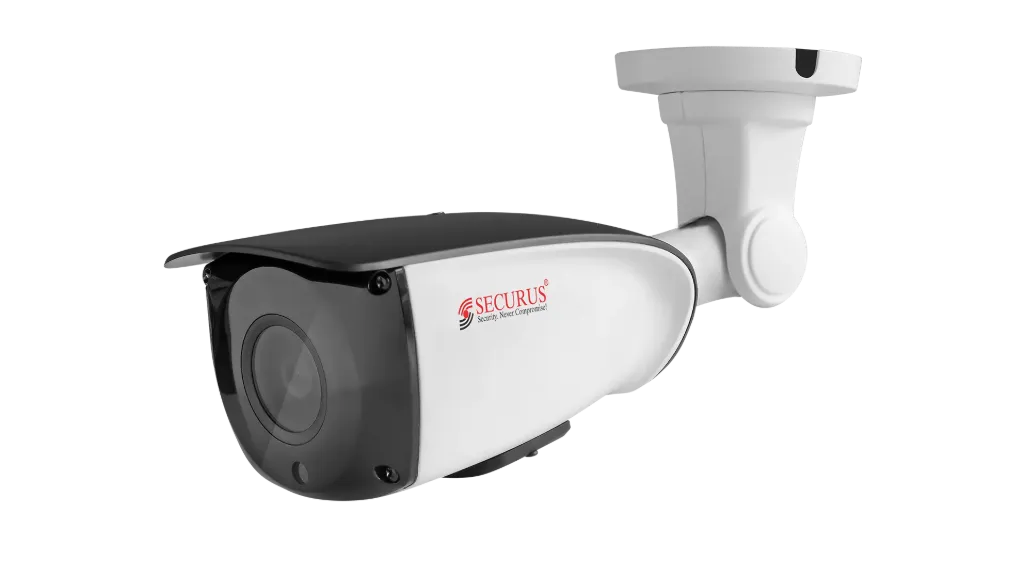

SWATAK PNLB04ML0800-HMST

SWATAK PNLB04ML0800-HMST

Network IP Outdoor Bullet Camera

Download Datasheet

₹ 0.00 ₹ 0.00

  • Product Series
  • Resolution
  • Lens
  • Material
  • Camera Technology
  • IR Distance
  • IP Camera Cable
Product Series Swatak Series
Resolution 4.0 Megapixel
Lens 8.0mm Lens
Material Aluminum
Camera Technology HumanSense Technology
IR Distance 50 Meters
IP Camera Cable 2 Cable
SWATAK PNLB04ML0800-HMST

Technical Specifications

Every performance detail, organized for faster product evaluation.

4MP Ultra HD Resolution

With a powerful 4MP sensor, the camera delivers sharp, detailed footage that captures every scene with exceptional clarity. Even at a distance, objects and faces remain easily identifiable, ensuring nothing important is missed. Experience enhanced visual precision for both live monitoring and recorded playback.

Built-in Microphone

The integrated microphone captures clear, synchronized audio along with the video feed. This helps you hear and see events as they happen, adding valuable context to surveillance footage. From conversations to unusual sounds, the built-in mic enhances situational awareness and overall security accuracy.

AI Smart Detection

Powered by intelligent AI analytics, the camera can accurately detect motion, recognize human figures, and identify faces in real time. This reduces false alarms caused by irrelevant movements and ensures critical events never go unnoticed. It brings smarter, more reliable surveillance to every environment.

IP67 Weatherproof Protection

Engineered with IP67-rated protection, the camera is built to perform in any weather condition. Whether it’s heavy rain, dust, or extreme temperatures, it maintains stable operation and image quality. Designed for durability, it ensures continuous security both indoors and outdoors.


BasicCameraLensDORIIlluminatorVideoAudioNetworkImage  Event General

Basic

Model
SWATAK PNLB04ML0800-HMST
Make
Securus

Product Range

4.0 MP AI Network Dome Camera

Video Standard

H.265+/H.265/H.264+/H.264/MJPEG

Camera

Image Sensor
1/2.8" Progressive Scan CMOS
Effective Pixels
2568 x 1448 (4MP)
Electronic Shutter
1/25 – 1/100000 s

Minimum Illumination

Color: 0.002 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR

Day/Night

IR cut filter (Auto / Schedule)

BLC / HLC

Supported

AWB

Yes (auto white balance adjustable)

SNR

≥ 45 dB

WDR

≥ 140 dB

Lens

Lens Type

Fixed focal lens

Lens Options
8.0 mm

Aperture

F1.0

Iris

Fixed

DORI

2.8 mm Lens
  • Detect: ~90 m
  • Observe: ~36 m
  • Recognize: ~18 m
  • Identify: ~9 m

Illuminator

IR Distance:
Up to 50 m
LED
Smart IR (Intelligent IR control)
LED Wavelength
850 nm

Video

Streaming Capability

Four Streams

Frame Rate

Up to 30 fps @ 4 MP

Bitrate
32 Kbps – 8 Mbps, CBR/VBR

Privacy Mask & ROI

Supported

Audio

Mic
Built-in

Audio I/O

 1 in / 1 out

Compression

G.711, Noise Filtering

Network

Protocols

ONVIF (S/G/T), TCP/IP, HTTPS, DHCP, RTSP, SNMP, etc.

Users

Up to 32, with Admin/Operator/User levels

Security

 HTTPS, AES-256 + RSA-2048 encryption, 802.1X authentication


Enhancements

WDR, BLC, HLC, 3D DNR

Settings

Brightness, Contrast, Saturation, White Balance

Privacy Mask

 Up to 4 zones

Event

Events
 Motion, Tampering, Exception, Scene Change
AI Features
Face Capture, Perimeter Protection (Line crossing, Intrusion, Region entrance/exit)

General

Power
 12V DC (Max. 8 W) / PoE IEEE 802.3af (≤ 7.5 W)
Operating Temp
-30 °C ~ +85 °C

Protection

IP67 & IK10, Metal Housing
