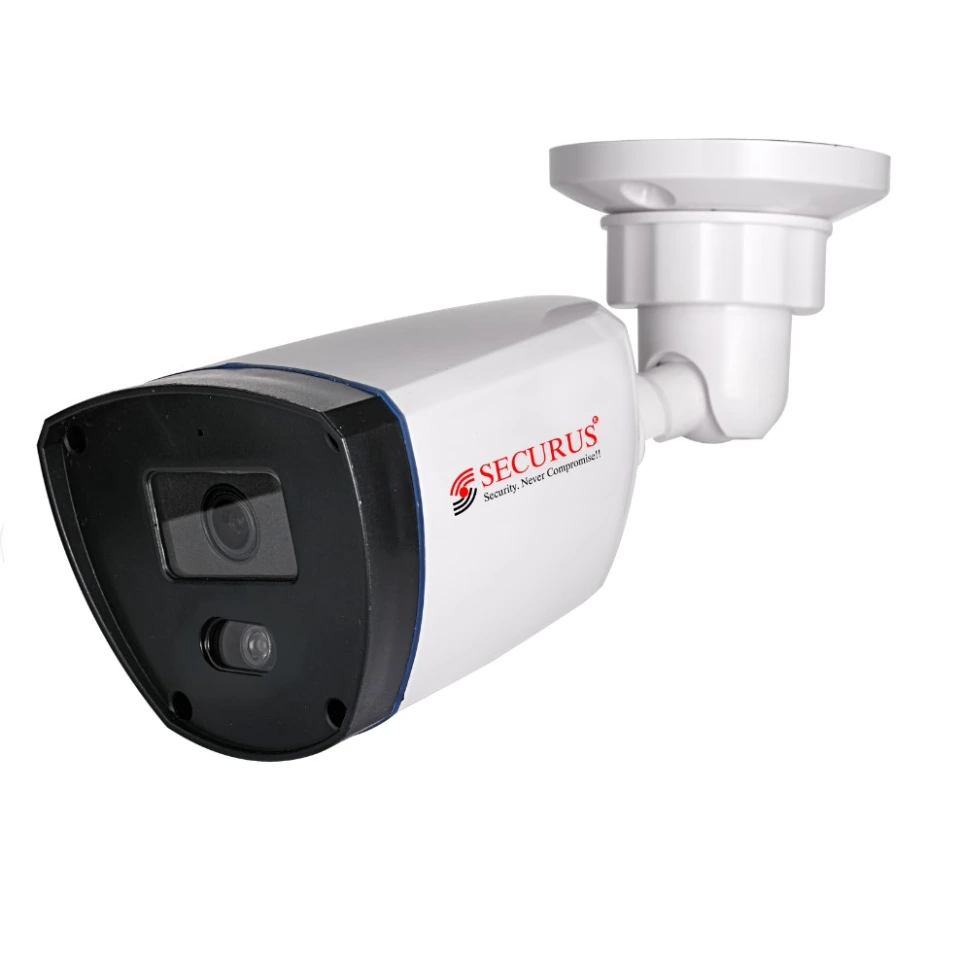

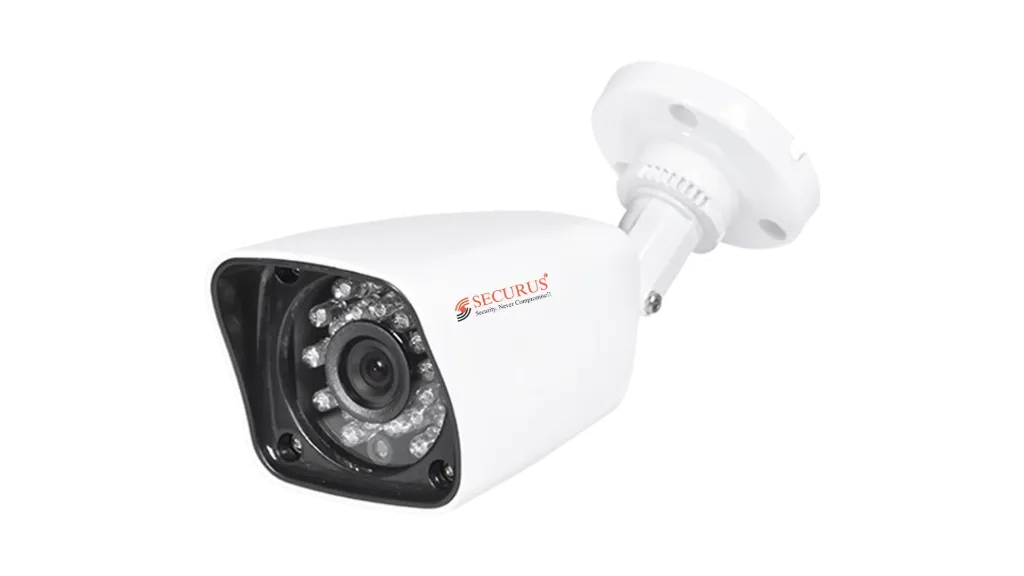

SS-20L2TM-TPHSD-M2.4(S)

HD-TVI Outdoor Metal Bullet Camera

Download Datasheet ​                                                      ​
₹ 0.00 ₹ 0.00

  • Brand
  • Lens
  • Material
  • Product Series
  • IR Distance
  • Camera Technology
  • Resolution
Brand Securus
Lens 3.6mm Lens
Material Semi Metal
Product Series Purple Series
IR Distance 15 Meters
Camera Technology HumanSense Technology
Resolution 2.4 Megapixel
SS-20L2TM-TPHSD-M2.4(S)

Technical Specifications

Every performance detail, organized for faster product evaluation.

BasicCameraLensDORIIlluminatorVideoAudioInterfaceGeneral Parameters

Basic

Model
SS-15D-TPUTL-M2.4(S)
Make
Securus

Product Range

Utility Range

TV System

PAL/NTSC

Video Standard

HD-TVI

Camera

Image Sensor
1/2.7" 2.4 MP CMOS Sensor
Effective Pixels
1984 × 1225
1920 × 1080
Day/Night:
Auto (ICR) / Color / B/W

BLC

Auto

AWB

Auto

Electronic Shutter

1/25 (1/30) – 1/50,000 sec

Noise Reduction

2D / 3D

Synchronization

Internal

Lens

Lens Mount
3.6 mm HD Fixed Lens
Minimum Illumination
0.01 Lux / F1.2 (AGC ON)

DORI

3.6 mm Lens
  • Detect: 31.8 m
  • Observe: 12.8 m
  • Recognize: 6.3 m
  • Identify: 3.2 m

Illuminator

IR Distance:
20 – 30 m
LED
1 Smart IR LED
LED Wavelength
SmartExir Technology

Video

Frame Rate
1920 × 1080 @ 25/30 FPS
Video Output
1 × BNC Out
Video Format
HD-TVI, CVI, AHD

Audio

Audio
Built-in coaxial audio

Interface

Transmission Distance

500 m @ 75-3 coaxial cable

General Parameters

Power Supply
12V DC ±10%
Operating Temperature
-10°C to +60°C (90% humidity max)
Certifications

CE, FCC
