Basic

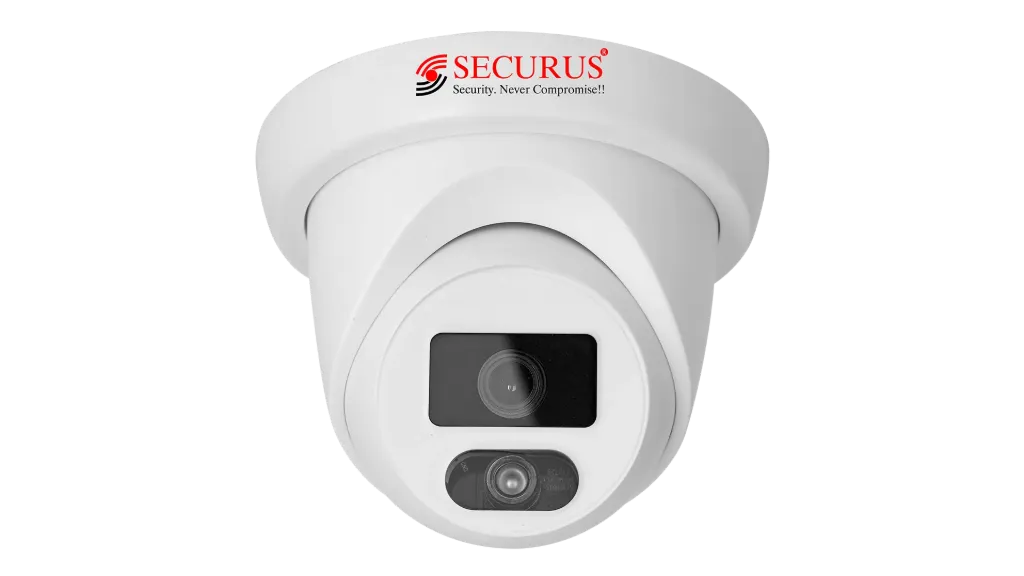

| Model | SS-15D-TPUTL-M5(S) |
| Make | SECURUS |
| Product Range | Utility Range |
| TV System | PAL/NTSC |
| Video Standard | Compliance with HD-TVI |
Camera
| Image Sensor | 1/2.5" 5.0 Megapixel Image Sensor |
| Effective Pixels | 2592 x 1944 Pixels |
| Day/Night | Auto(ICR)/Color/BW |
| BLC | Auto |
| AWB | Auto |
| Electronic Shutter | 1/25 (1/30) - 1/50,000 seconds |
| Noise Reduction | 2D/3D |
| Synchronization | Internal |
Lens
| Lens Mount | 3.6mm/4.0mm/6.0mm HD Lens |
| Minimum Illumination | 0.01 Lux/ F1.2 (AGC ON) |
Illuminator
| IR Distance | 20 ~ 30 Meters |
| LED | 1 Smart IR LED |
| LED Wavelength | SmartExir Technology |
Video
| Frame Rate | 2592 x 1944 Pixels @ 25FPS/@ 30FPS |
| Video Output | 1 x BNC Video Out |
| Video Format | HD-TVI, CVI, AHD, CVBS |
Audio
| Audio | Built in coaxial audio |
Interface
| Transmission Distance | 500 Meters @ 75-3 Coaxial Cable |
General
| Power Supply | 12V DC ±10% |
| Operating Temperature | -10 to +60 deg. C (Humidity: 90% max) |
| Certifications | CE, FCC, RoHS, BIS |
