SS-15D-TPUTL-M2.4(S)

SS-15D-TPUTL-M2.4(S)

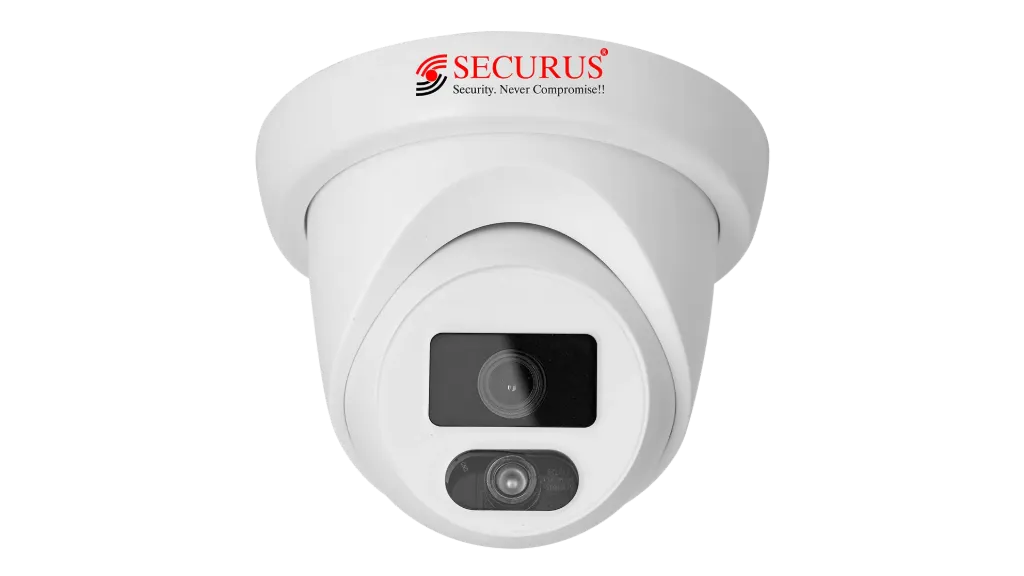

HD-TVI Indoor Dome Camera

Download Datasheet

₹ 0.00 ₹ 0.00

  • Lens
  • Material
  • Product Series
  • IR Distance
  • Camera Technology
  • Resolution
Lens 3.6mm Lens
Material ABS Plastic
Product Series Purple Series
IR Distance 15 Meters
Camera Technology SmartEXiR Technology
Resolution 2.4 Megapixel
SS-15D-TPUTL-M2.4(S)

Technical Specifications

Every performance detail, organized for faster product evaluation.


BasicCameraLensDORIIlluminatorVideoAudioInterfaceGeneral Parameters

Basic

Model
SS-15D-TPUTL-M2.4(S)
Make
Securus

Product Range

Utility Range

TV System

PAL/NTSC

Video Standard

HD-TVI

Camera

Image Sensor
1/2.7" 2.4 MP CMOS Sensor
Effective Pixels
1984 × 1225
1920 × 1080
Day/Night:
Auto (ICR) / Color / B/W

BLC

Auto

AWB

Auto

Electronic Shutter

1/25 (1/30) – 1/50,000 sec

Noise Reduction

2D / 3D

Synchronization

Internal

Lens

Lens Mount
3.6 mm HD Fixed Lens
Minimum Illumination
0.01 Lux / F1.2 (AGC ON)

DORI

3.6 mm Lens
  • Detect: 31.8 m
  • Observe: 12.8 m
  • Recognize: 6.3 m
  • Identify: 3.2 m

Illuminator

IR Distance:
20 – 30 m
LED
1 Smart IR LED
LED Wavelength
SmartExir Technology

Video

Frame Rate
1920 × 1080 @ 25/30 FPS
Video Output
1 × BNC Out
Video Format
HD-TVI, CVI, AHD

Audio

Audio
Built-in coaxial audio

Interface

Transmission Distance

500 m @ 75-3 coaxial cable

General Parameters

Power Supply
12V DC ±10%
Operating Temperature
-10°C to +60°C (90% humidity max)
Certifications

CE, FCC

Let's Connect

Get in touch with your customers to provide them with better service. You can modify the form fields to gather more precise information.

Submit


HD-TVI Technology

High-Definition Transport Video Interface (HD-TVI) technology transmits high-quality video over standard coaxial cables without signal degradation. This enables crisp, smooth footage even across long distances, reducing installation complexity and cost. HD-TVI ensures that every recorded image is sharp and reliable, perfect for both small and large-scale security setups.

Smart IR LED

Advanced Smart IR LEDs provide superior night vision, ensuring your surveillance system captures clear, detailed images even in complete darkness. By automatically adjusting the infrared intensity, it prevents overexposure while maintaining visibility across the frame. This feature ensures reliable 24/7 monitoring, making it ideal for homes, offices, and commercial spaces where security cannot be compromised.

Built-in Audio

The built-in microphone allows the system to capture sound alongside video, providing a richer, more complete surveillance experience. You can monitor conversations, detect unusual noises, or confirm events as they happen. Integrated audio enhances situational awareness and adds an extra layer of security, ensuring you don’t miss any critical details.

SmartEXIR Technology

SmartExir provides enhanced illumination and improved image clarity by distributing light evenly and minimizing dark spots and glare. This intelligent technology ensures your cameras deliver bright, sharp footage even in low-light or challenging lighting conditions. The result is consistent, high-quality monitoring with reduced blind spots and better overall security coverage.

/
