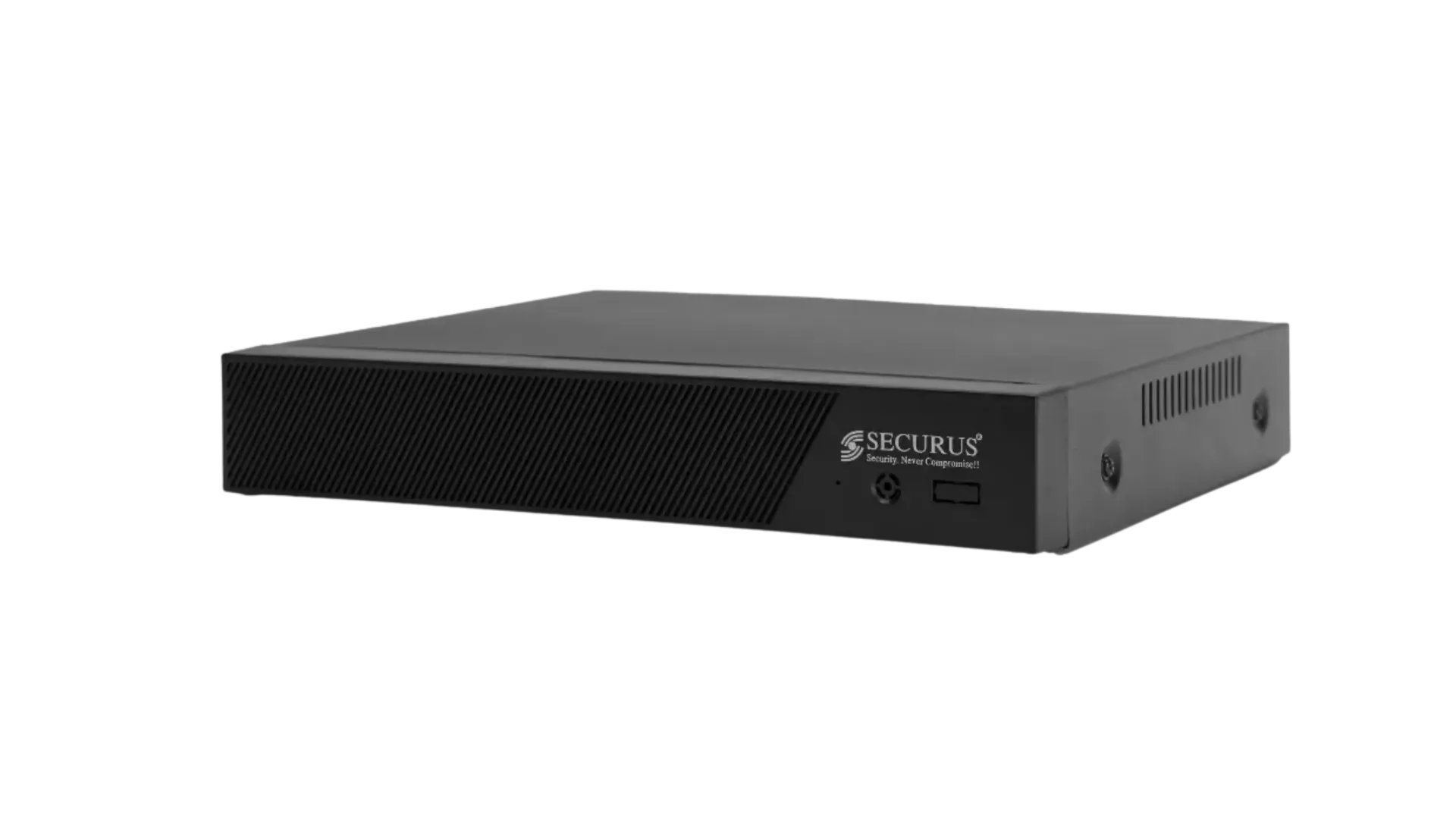

SS-8084-TPHD-M5(SF)

SS-8084-TPHD-M5(SF)

8 Channels 5MP Lite AI HD Recorder with 1 HDD Slot

Download Datasheet

₹ 0.00 ₹ 0.00

  • HD Channels
  • HD Co-Axial Audio
HD Channels 8 Channels
HD Co-Axial Audio Supported
SS-8084-TPHD-M5(SF)

Technical Specifications

Every performance detail, organized for faster product evaluation.

HD Recorder

The HD Recorder delivers sharp, high-definition video recording that ensures every detail is captured with clarity. Whether it’s live monitoring or playback, the system maintains smooth visuals, reducing the chances of missing important moments. This feature provides reliable performance for both residential and commercial surveillance needs, giving you confidence in your security setup.

COAX Audio

With Coax Audio support, the system can transmit both video and audio signals over a single coaxial cable. This simplifies installation and reduces the need for extra wiring. It allows you to capture and review conversations or background sounds alongside video footage, offering a more complete surveillance solution.

Face Detection

Equipped with intelligent Face Detection, the system can identify and highlight human faces in the video feed. This makes it easier to search, review, and analyze footage for specific events. By reducing false alerts from irrelevant movements, Face Detection adds a smart layer of accuracy and efficiency to your security monitoring.

H.265 AI Compression

H.265 AI Video Compression technology reduces file sizes without compromising image quality. It optimizes storage by using advanced algorithms, allowing you to store more footage on the same hard drive. This efficiency also ensures smoother streaming during remote viewing, saving both bandwidth and storage costs while maintaining crisp, clear video.


BasicSystemVideoAudioRecordingStorageBackup & NetworkInterfaceGeneral Parameters

Basic

Model
SS-8084-TPHD-M5(SF)
Make
Securus

Product Range

HD DVR Range

System

Operating System
Embedded Linux
User Interface
Graphic User Interface (GUI)

Video

Video Compression
H.265+, H.265, H.264
Video Input
8 CH BNC

Video Output

HDMI, VGA, BNC

VGA Output

Available

HDMI Output

Available

Display Resolution

5MN / 1080P / 1080N / 720P

Audio

Audio Compression
G.711A
Audio Input
4 CH

Audio Output

1 CH

Bi-Directional Talk

Available

Recording

Recording Mode
Manual / Alarm / Motion / Schedule
Recording Resolution
5MN, 1080P, 1080N, 720P, 960P, D1

Recording Parameters

Max 8 × 5.0MP @ 15 FPS

Playback

8 Channel

Storage

HDD Port
 1 × SATA (Up to 8TB Each)

Backup & Network

Backup Mode
Network, USB HDD
Dual Stream
Supported

Network Port

RJ45 10/100 Mbps Self-Adaptive Port

Network Protocols

IPv4, PPPoE, 3G, DDNS, NTP, ARSP, SMTP, P2P Cloud, UPnP

ONVIF Protocol

 Compliant

P2P Cloud Service

Available

Interface

USB Connectors
2 USB Ports
PTZ Control
Yes

Alarm Input/Output

N.A.

General Parameters

Power Supply
DC 12V, 2A
Power Consumption
≤15W (without HDD)

Dimensions

255mm × 255mm × 45mm

Weight

≤1.5 Kg (without HDD)

Operating Temperature

 +5°C ~ +50°C

Storage Temperature

-20°C ~ +70°C

Environmental Humidity

30% ~ 95% RH

Certifications

CE, FCC, RoHS, BIS
