Basic

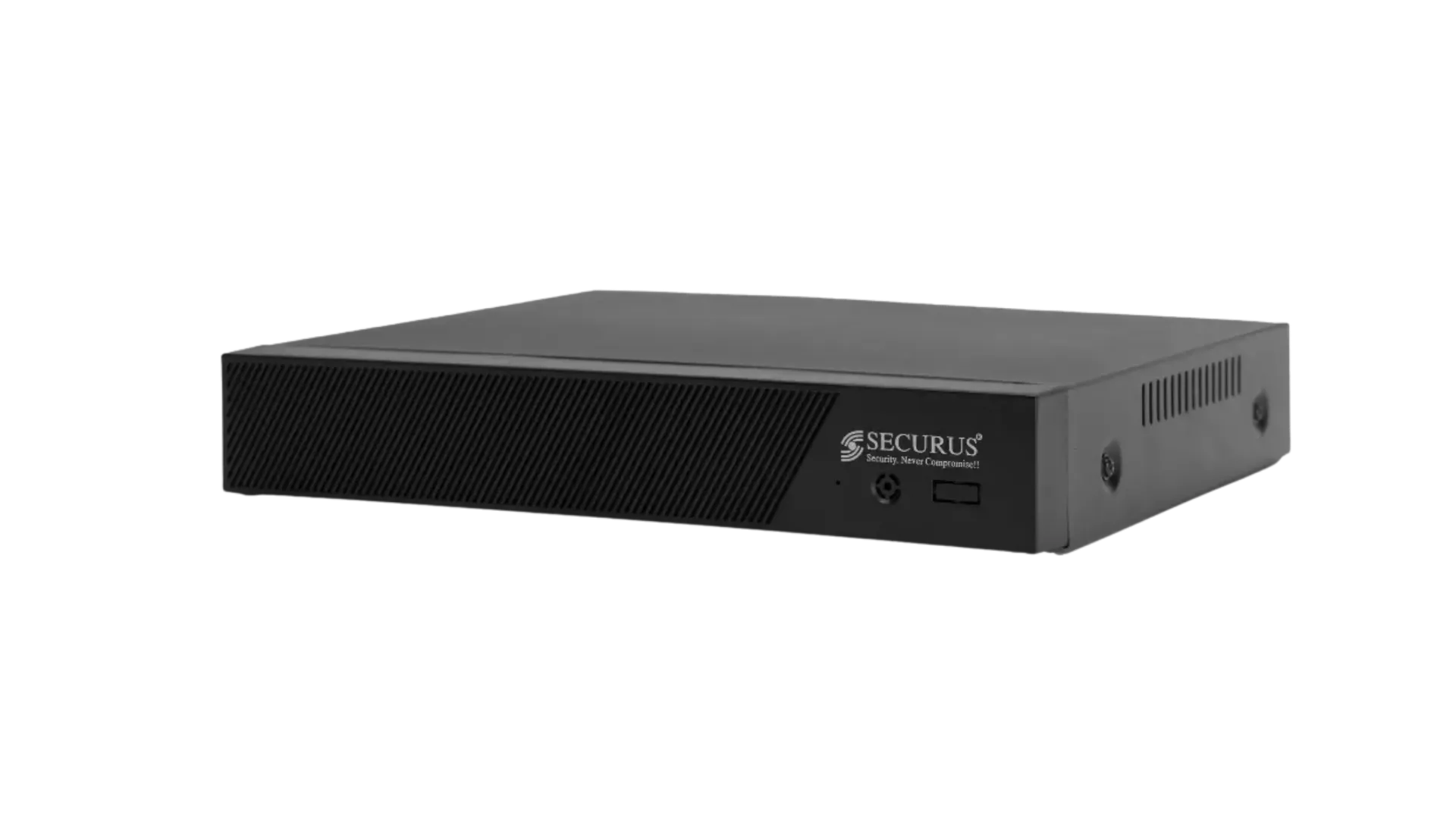

| Model | SS-8044-TPHD-M8(4K) |
| Make | SECURUS |
| Product Range | HD DVR Range |
System
| Operating System | Embedded Linux |
| User Interface | Graphic User Interface (GUI) |
Video
| Video Compression | H.265+, H.265,H.264 |
| Video Input | 4 CH BNC |
| Video Output | HDMI, VGA,BNC |
| VGA Output | Available |
| HDMI Output | Available |
| Display Resolution | HD 8M; 5M; 1080P; 1080N; 720P |
Audio
| Audio Compression | G.711A |
| Audio Input | 4CH |
| Audio Output | 1CH |
| Bi-Directional Talk | Available |
Recording
| Recording Mode | Manual/Alarm/Motion/Schedule |
| Recording Resolution | 8M, 5M, 1080P,1080N, 720P, 960P, D1 |
| Recording Parameters | MAX: 4 x 8MP (4K) |
| Playback | 4 Channel |
Storage
| HDD Port | 1 x SATA (Max- 10TB Each) |
Backup & Network
| Backup Mode | Network, USB HDD |
| Dual Stream | Supported |
| Network Port | RJ45 10/100 MBPS Self Adaptive Port |
| Network Protocols | IPv4,PPPoE,3G,DDNS,NTP, ARSP, SMTP, P2P Cloud, UPnP |
| ONVIF Protocol | Compliant |
| P2P Cloud Service | Available |
Interface
| USB Connectors | 2 USB Ports |
| PTZ Control | Yes |
| Alarm Input/Output | N. A. |
General
| Power Supply | DC12 Volts 2 Amperes |
| Power Consumption | ≤15W (No HDD) |
| Dimensions | 255mm x 255mm x 45mm |
| Weight | ≤1.5 KGs (No HDD) |
| Operating Temperature | +5°C ~ +50°C |
| Storage Temperature | -20°C ~ +70°C |
| Environmental Humidity | 30% ~ 95% Humidity |
| Certifications | CE, FCC, RoHS, BIS |
