Basic

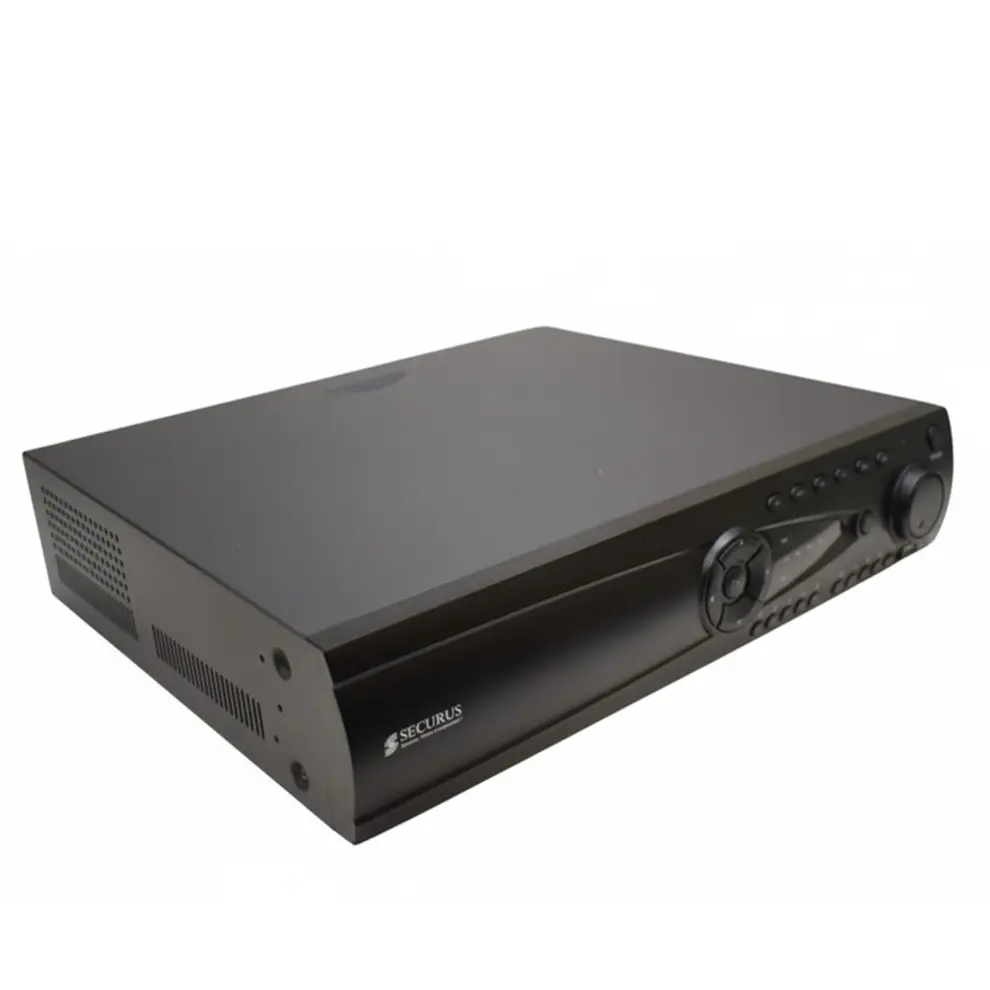

Model | SS-N8064RV-H8-M5 |
Make | Securus |
Product Range | AI Network Video Recorder (NVR) |
System
Operating System | Embedded Linux |
User Interface | Graphic User Interface (GUI) |
Operation Mode | Preview, Record, Playback, Backup, Network |
Password Security | Multi-level User Management |
ONVIF Protocol | Supported |
Video
Video Compression | H.265+ / H.265 / H.264+ / H.264 |
Video Input | 64 CH (1080P) / 36 CH (4MP) / 24 CH (5MP) |
Video Output | HDMI, VGA |
VGA Output | 1 port (Max. 1080P) |
HDMI Output | 2 ports (Max. 4K) |
Display Resolution | 12MP, 8MP, 5MP, 4MP, 3MP, 1080P |
Audio
Audio Compression | G.711A |
Audio Input | 1 CH (BNC) |
Audio Output | 1 CH (RCA) |
Bi-Directional Talk | Supported |
Recording
Recording Mode | Always / Schedule / Alarm / Motion Detection |
Recording Resolution | Up to 12MP | 64 CH Realtime Recording |
Synchronous Playback | Up to 16 CH |
Video Search | By Time / Channel / Event |
Record Mode | Audio & Video simultaneously |
Storage
HDD Port | 8 × SATA |
Max HDD Capacity | 12 TB each (up to 96 TB total) |
RAID | Supported (redundant array of independent disks) |
Backup & Network
Backup Mode | USB device / Network |
Dual Stream | Supported |
Network Port | 2 × RJ45 10/100/1000 Mbps |
Network Protocols | 900 Mbps Incoming / 900 Mbps Outgoing |
Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP |
Remote Control | Supported |
Mobile Monitoring | RMEye Pro App (Android & iOS) |
Firmware Update | USB update / Network update |
Interface
USB Connectors | 2 × USB2.0, 1 × USB3.0 |
Serial Ports | RS485, RS232 |
Alarm I/O | 16 in / 4 out |
Intelligent Functions
Intelligent Functions |
|
General Parameters
Power Supply | ATX |
Chassis | Standard 2U |
Dimensions | 427.5 mm (W) × 443 mm (L) × 92 mm (H) |
Weight | ≤ 6.0 Kg |
Operating Temperature | -10 °C ~ +55 °C |
Environmental Humidity | 10% – 90% RH (non-condensing) |
Certifications | CE, FCC, RoHS, BIS |
