SS-20L2TP-TPUTL-M5(S)

SS-20L2TP-TPUTL-M5(S)

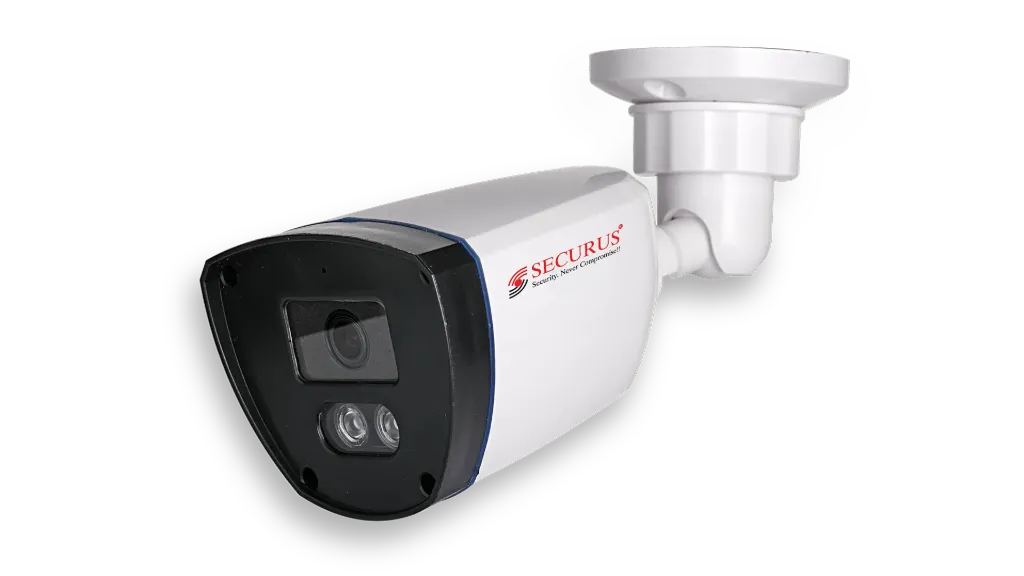

HD-TVI Outdoor Bullet Camera

Download Datasheet

₹ 0.00 ₹ 0.00

  • Lens
  • Material
  • Product Series
  • IR Distance
  • Camera Technology
  • Resolution
Lens 3.6mm Lens
Material ABS Plastic
Product Series Purple Series
IR Distance 20 Meters
Camera Technology SmartEXiR Technology
Resolution 5.0 Megapixel
SS-20L2TP-TPUTL-M5(S)

Technical Specifications

Every performance detail, organized for faster product evaluation.

HD-TVI Technology

High-Definition Transport Video Interface (HD-TVI) technology transmits high-quality video over standard coaxial cables without signal degradation. This enables crisp, smooth footage even across long distances, reducing installation complexity and cost. HD-TVI ensures that every recorded image is sharp and reliable, perfect for both small and large-scale security setups.

Smart IR LED

Advanced Smart IR LEDs provide superior night vision, ensuring your surveillance system captures clear, detailed images even in complete darkness. By automatically adjusting the infrared intensity, it prevents overexposure while maintaining visibility across the frame. This feature ensures reliable 24/7 monitoring, making it ideal for homes, offices, and commercial spaces where security cannot be compromised.

Built-in Audio

The built-in microphone allows the system to capture sound alongside video, providing a richer, more complete surveillance experience. You can monitor conversations, detect unusual noises, or confirm events as they happen. Integrated audio enhances situational awareness and adds an extra layer of security, ensuring you don’t miss any critical details.

SmartEXIR Technology

SmartExir provides enhanced illumination and improved image clarity by distributing light evenly and minimizing dark spots and glare. This intelligent technology ensures your cameras deliver bright, sharp footage even in low-light or challenging lighting conditions. The result is consistent, high-quality monitoring with reduced blind spots and better overall security coverage.


BasicCameraLensDORIIlluminatorVideoAudioInterfaceGeneral Parameters

Basic

Model
SS-20L2TP-TPUTL-M5(S)
Make
Securus

Product Range

Utility Range

TV System

PAL/NTSC

Video Standard

HD-TVI Colorsense

Camera

Image Sensor
1/2.5" 5 Megapixel Image Sensor
Effective Pixels
2592 x 1944 Pixels

Day/Night

Auto (ICR) / Color / B/W

BLC

Auto

AWB

Auto

Electronic Shutter

1/25 (1/30) - 1/50,000 seconds

Noise Reduction

2D/3D

Synchronization

Internal

Lens

Lens Mount
 3.6mm HD Lens
Minimum Illumination
0.1 Lux / F1.2 (AGC ON)

DORI

3.6 mm Lens
• Detect: 43.6 m
• Observe: 17.6 m
• Recognize: 8.7 m
• Identify: 4.4 m

Illuminator

Distance
20–30 meters
LED
1 White LEDs
LED Wavelength
1 Smart IR LED

Video

Frame Rate
2592 x 1944 Pixels @ 25FPS/@ 30FPS
Video Output
1 x BNC Video Out
Video Format
HD-TVI, CVI, AHD, CVBS

Audio

Audio
Built-in coaxial audio

Interface

Transmission Distance
500m @ 75-3 coaxial cable

General Parameters

Power Supply
12V DC ±10%
Operating Temperature
-10°C to +60°C (90% max humidity)
IP Rating
IP67

Certifications

CE, FCC
