Basic

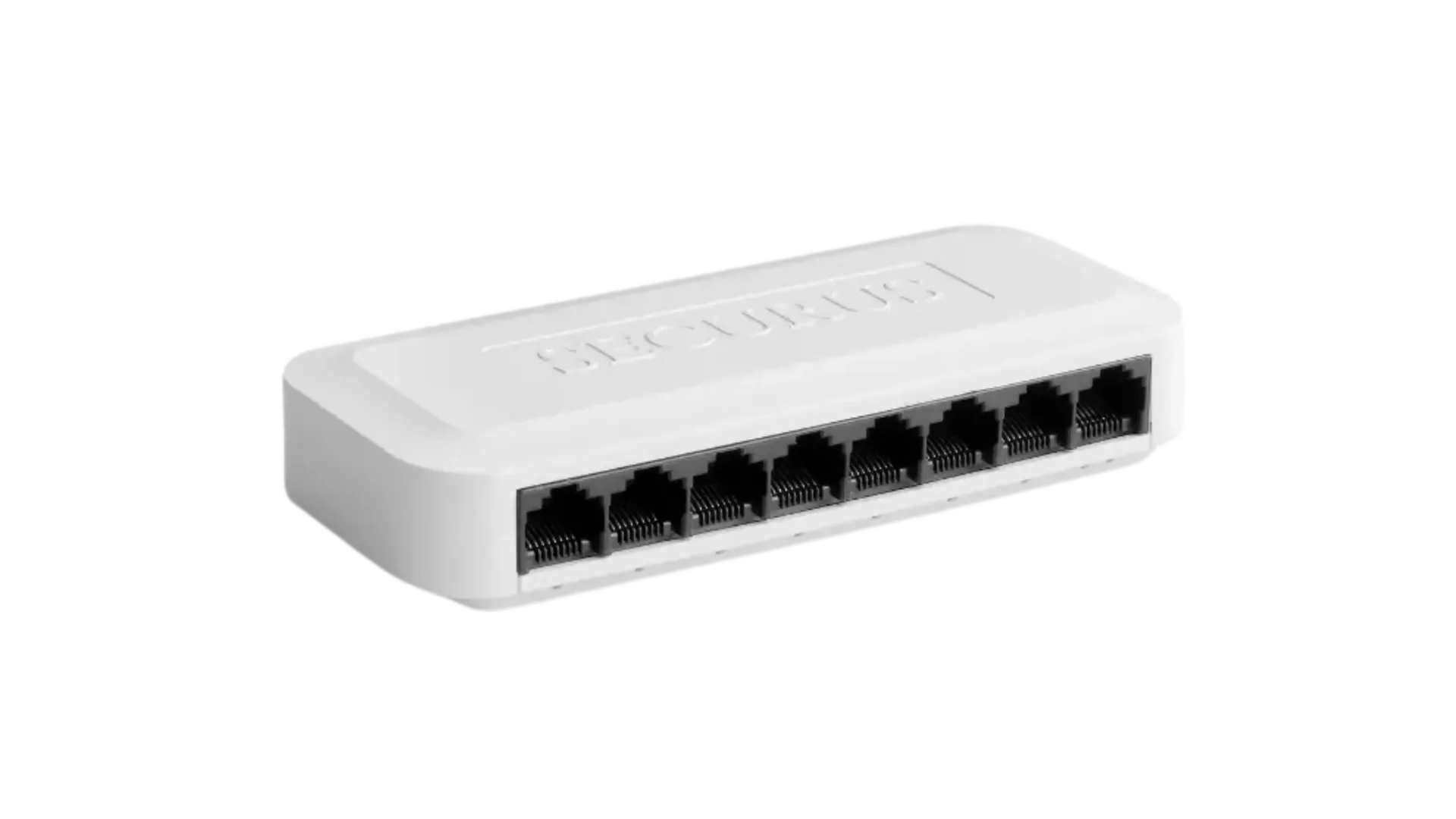

| Model | SS-NS08G |
| Make | SECURUS |
| Type | 8 x 1000 Base-TX Switch |
| Dimensions (L*W*H) | 140mm x 80mm x 26mm |
| Weight | 380g |
Network
| Switch Ports | 8 x 10/100/1000 Mbps |
| Network Standard | IEEE802.3, IEEE802.3u, IEEE802.3x |
Performance
| Backplane Bandwidth | 10Gbps |
| Forwarding Capacity | 11.904Mbps |
| Packet Buffer | 1M |
| MAC Address List | 2K |
| Forward Mode | Store and Forward |
Features
| Flow Control | Supports IEEE802.3X Full-Duplex Flow Control |
| Auto MDI/MDIX | Supported |
| Installation | Supports Desktop and Wall Mount Installation |
| Plug and Play | Yes, No Need to Configure |
Protection
| Protection | Surge Protection: 2KV (common mode), 10/700us IEC 61000-4-5; ESD Protection: Contact Discharge: ±4KV, Air Discharge: ±4KV; Standard: IEC 61000-4-2 |
General
| Power Supply | Power Adapter, 5V/1A |
| Operating Temperature | -20~55°C |
| Storage Temperature | -40~75°C |
| Humidity | 5%-95% (non-condensing) |
| Mean Time Between Failures (MTBF) | >50000h |
| Certification | CE, FCC, RoHS |
