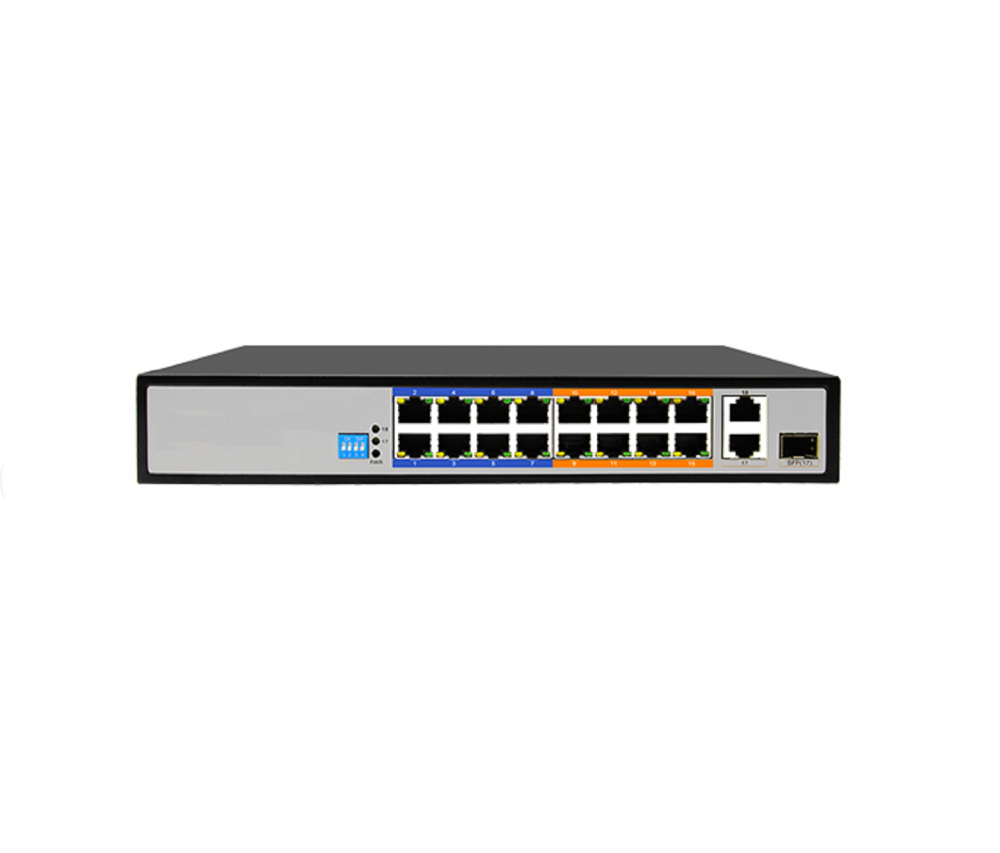

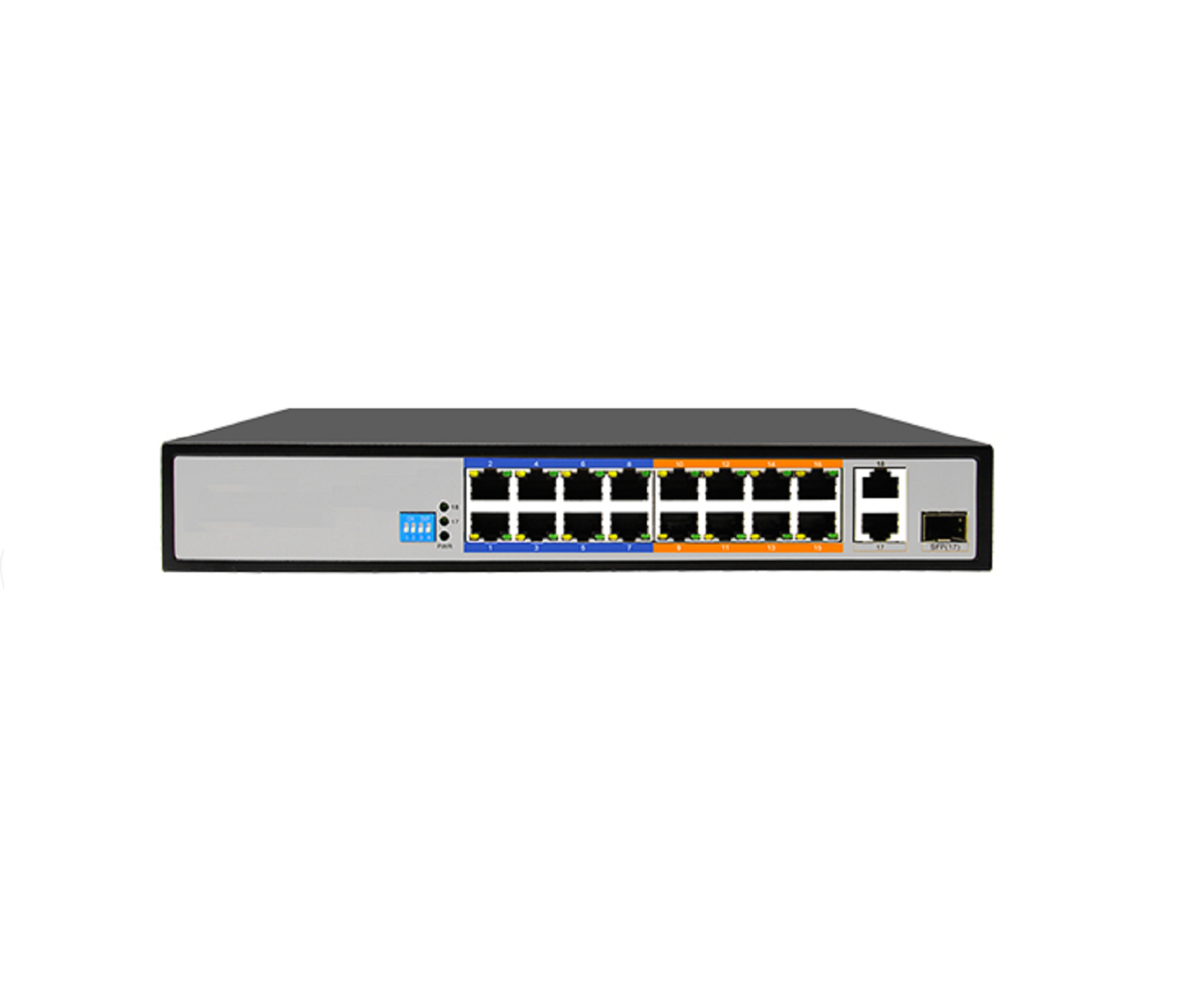

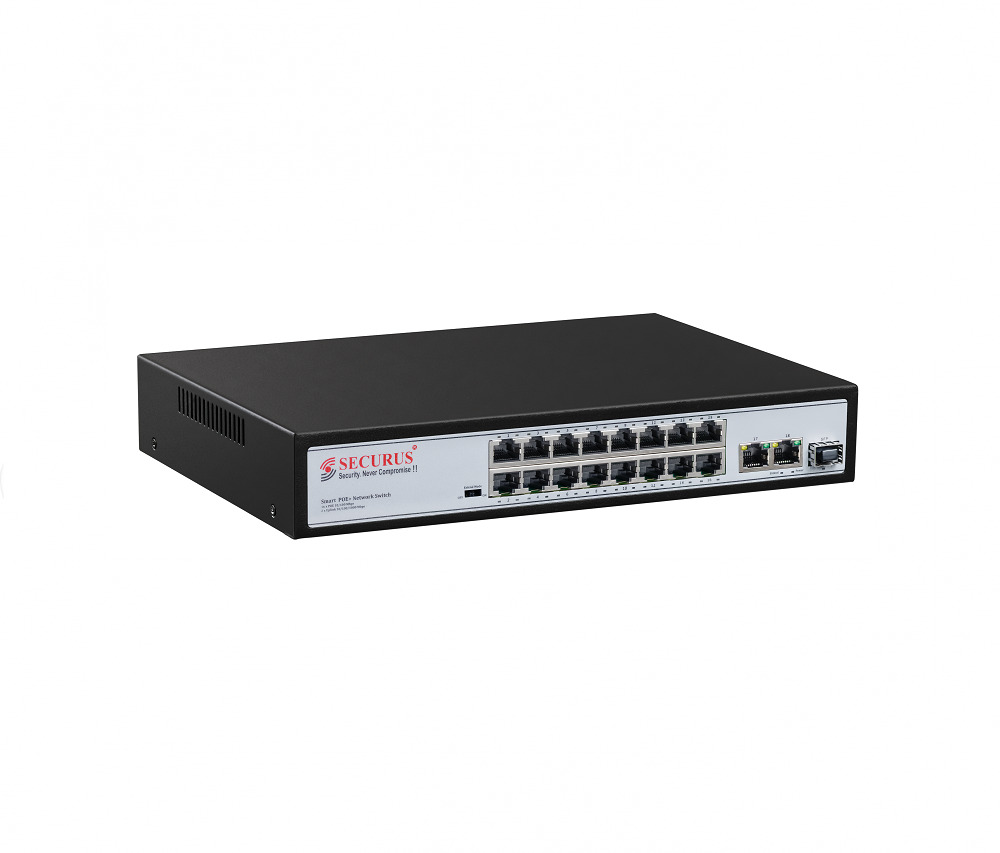

SS-N16EP-G2-S1
16+2 PORTS + 1 PORT SFP POE+ SWITCH- 16+2 Ports POE Switch
- 10/100 16 Ports POE AF/At
- 10/100/1000 2 Ports Uplink + 1 SFP Port
- 200W Power Budget
| Model | SS-N16EP-G2-S1 |
|---|---|
| Make | SECURUS |
| Network Ports | 1~16 Port : 10/100Mbps POE RJ45 Port Uplink Port: 2x10/100/1000Mbps Non-POERJ445port 1x10/100/1000Mbps Gigabit SFP port |
| Transmission Distance | 1~16 Port : 100Mtrs@ 100Mbps; 250Mtrs@10Mbps Uplink Port : 100m |
| Transmission Media | 1~16 Port : Cat5e/6 standard UTPcable, Uplink Port COMBO: Cat5e/6 standard UTPcable |
| POE Standard | IEEE802.3iã€IEEE802.3uã€IEEE802.3x,IEEE802.3af/at/ab, IEEE802.3 af/at Standard |
| POE Power Supply Method | End-Span Method |
| POE Power Supply Watt | Each Port ≤ 30W, whole unit ≤ 200W |
| Network Standard | IEEE802.310BASE-T, IEEE802.3u 100BASE-TX/FX, IEEE802.3az, IEEE802.3z, IEEE802.3ab |
| Swap Mode | Store & Forward |
| Data Caching Mechanism | 4.1 M |
| MAC Address List | 8 K |
| Power Indicator Light | One Power Light (red |
| COMBO port indicator | 2 indicator light (green) : 17/18portcorresponding green light keeps on when the port is well connected, Blinking when transmitting. |
| POE indicator | 16 POE indicator light (yellow) |
| Network Port indicator | 1~16 port (green light), keep on when well connected; Blinking when transmitting data |
| LCD Display | User-friendly interface, real-time display the system power, PSE POE power and its working conditions |
| Reset Button | One button. Whole machine will restart while pressing the button |
| Surge Immunity | Level 3 executive standard: IEC61000-4-5 |
| Whole unit Electronic Protection | Level 3 Executive standard:IEC61000-4-2 |
| Power Supply Mode | Built in Power Supply |
| Voltage Range | AC96 ~ 264V |
| Bandwidth | 7.2Gbps |
| Packet forwarding rate | 5.36Mbps |
| Input power | 100-240V /50-60Hz |
| POE Pin | 1/2/4/5(+)，3/6/7/8(-) |
| Single port max output Power | 1-4 Port 90W 5-8port 30W ; Max power supply:120W |
| Power Consumption | The device < 15W, POE power supply < 260W |
| Working Temperature | 0ËšC ~ 40ËšC |
| Storage Temperature | -40ËšC ~ 70ËšC |
| Humidity | 10 ~ 90% |
| Dimensions (L x W x H) | 285mm x 180mm x 44mm |
| Color (Chasis) | Black |
| Weight | About 4.25kg |
| Mean Time Between Failures (MTBF) | >50000 Hours |
